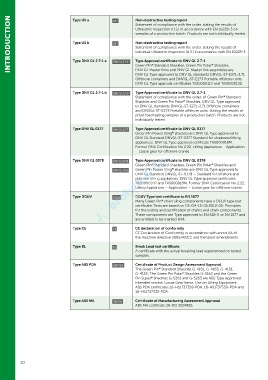

P. 10

INTRODUCTION               Type US a         US  a b   Non-destructive testing report
                                                             Statement of compliance with the order, stating the results of
                                                             Ultrasonic Inspection (U.S.) in accordance with EN 10228-3 on
                                                             samples of a production batch. Products are not individually tested.
                                 Type US b
                                                             Non-destructive testing report
                                                   US
                                                             Statement of compliance with the order, stating the results of
                                                             individual Ultrasonic Inspection (U.S.) in accordance with EN 10228-3.
                                                             Type Approval certificate to DNV GL 2.7-1
                                 Type DNV GL 2.7-1 a
                                                   DNV GL 2.7-1
                                                          a
                                                             Green Pin  Standard Shackles, Green Pin Polar  Shackles,
                                                                    ®
                                                                                               ®
                                                             DNV GL Master links and DNV GL Master link assemblies are
                                                             DNV GL Type approved to DNV GL standards DNVGL-ST-E271-2.71
                                                             Offshore containers and DNVGL-ST-E273 Portable offshore units.
                                                             DNV GL Type approval certificates TAS000011V and TAS000013Z.
                                 Type DNV GL 2.7-1 b   DNV GL 2.7-1  b  Type Approval certificate to DNV GL 2.7-1
                                                             Statement of compliance with the order, of Green Pin  Standard
                                                                                                    ®
                                                             Shackles and Green Pin Polar  Shackles, DNV GL Type approved
                                                                                  ®
                                                             to DNV GL standards DNVGL-ST-E271-2.71 Offshore containers
                                                             and DNVGL-ST-E273 Portable offshore units. Stating the results of
                                                             proof load testing samples of a production batch. Products are not
                                                             individually tested.
                                 Type DNV GL 0377   DNV GL 0377  Type Approval certificate to DNV GL 0377
                                                                             ®
                                                             Green Pin Power Sling  shackles are DNV GL Type approved to
                                                             DNV GL Standard DNVGL-ST-0377 Standard for shipboard lifting
                                                             appliances. DNV GL Type approval certificate TAS000018M.
                                                             Former DNV Certification No 2.22, Lifting Appliances – Application
                                                             – Loose gear for offshore cranes.
                                 Type DNV GL 0378  DNV GL 0378  Type Approval certificate to DNV GL 0378
                                                             Green Pin  Standard Shackles, Green Pin Polar  Shackles and
                                                                    ®
                                                                                               ®
                                                                             ®
                                                   DNV GL CG3  Green Pin Power Sling  shackles are DNV GL Type approved to
                                                             DNV GL Standard DNVGL-ST-0378 – Standard for offshore and
                                                             platform lifting appliances. DNV GL Type approval certificates
                                                             TAS00001H7 and TAS000018M. Former DNV Certification No 2.22,
                                                             Lifting Appliances – Application – Loose gear for offshore cranes.
                                 Type DGUV         DGUV      DGUV Type test certificate to EN 1677
                                                             Many Green Pin  chain sling components have a DGUV type test
                                                                         ®
                                                             certificate. Tests are based on GS-OA-15-05:2012-05: Principles
                                                             for the testing and certification of chains and chain components.
                                                             These components are Type approved to EN 818-2 or EN 1677 and
                                                             are entitled to be marked H94.

                                 Type CE           CE        CE declaration of conformity
                                                             CE Declaration of Conformity in accordance with annex IIA of
                                                             the machine directive 2006/42/EC and the latest amendments.

                                 Type BL           BL        Break Load test certificate
                                                             A certificate with the actual breaking load experienced on tested
                                                             samples.

                                 Type ABS PDA      ABS PDA   Certificate of Product Design Assessment Approval
                                                             The Green Pin  Standard Shackles G-4161, G-4163, G-4151,
                                                                        ®
                                                             G-4153; The Green Pin Polar  Shackles G-5163 and the Green
                                                                                  ®
                                                             Pin Super  Shackles G-5261 and G-5263 are ABS Type Approved.
                                                                    ®
                                                             Intended service: Loose Gear Items. Use on Lifting Equipment.
                                                             ABS PDA certificates 18-HS1737328-PDA, 18-HS1737330-PDA and
                                                             18-HS1737332-PDA.
                                 Type ABS MA       ABS MA    Certificate of Manufacturing Assessment Approval
                                                             ABS MA certificate 18-RO 3524956.
