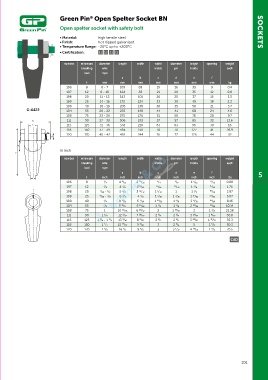

P. 101
Green Pin Open Spelter Socket BN
®
Open spelter socket with safety bolt SOCKETS
• Material: high tensile steel
• Finish: hot dipped galvanized
• Temperature Range: -20°C up to +200°C
• Certification: 2.1 2.2 3.1 CE
number minimum diameter length width width diameter length opening weight
breaking wire inside pin inside each
load rope
a b c d e f
t mm mm mm mm mm mm mm kg
196 8 6 - 7 109 69 19 16 33 9 0.4
197 12 8 - 10 124 83 21 20 35 12 0.8
198 20 11 - 13 143 101 26 25 37 15 1.3
199 25 14 - 16 172 124 33 30 49 18 2.3
100 40 18 - 19 205 138 38 35 58 21 3.7
G-6422 104 55 20 - 22 235 148 44 41 68 24 4.6
108 75 23 - 26 275 176 51 50 76 28 9.7
111 90 27 - 30 306 193 57 57 85 32 13.6
115 125 31 - 36 338 210 63 63 96 38 16
118 150 37 - 39 394 230 76 70 127 41 26.9
120 170 40 - 42 418 244 76 77 126 44 32
In inch
number minimum diameter length width width diameter length opening weight
breaking wire inside pin inside each
load rope
a b c d e f 5
t inch inch inch inch inch inch inch lbs
196 8 1 /4 4 /32 2 /32 3 /4 5 /8 1 /16 11 /32 0.88
23
9
5
7
9
197 12 3 /8 4 /8 3 /32 13 /16 25 /32 1 /8 15 /32 1.76
3
198 20 7 /16 - /2 5 /8 3 /32 1 /32 1 1 /2 19 /32 2.87
1
31
1
5
1
3
7
199 25 9 /16 - /8 6 /4 4 /8 1 /16 1 /16 1 /16 23 /32 5.07
3
15
5
5
100 40 3 /4 8 /32 5 /16 1 /32 1 /8 2 /32 13 /16 8.16
7
9
17
3
3
11
13
3
5
9
104 55 7 /8 9 /32 5 /16 1 /4 1 /8 2 /16 15 /16 10.14
108 75 1 10 /16 6 /32 2 1 /32 3 1 /8 21.38
13
31
1
29
1
1
19
1
11
111 90 1 /8 12 /32 7 /32 2 /4 2 /4 3 /32 1 /32 30.0
9
1
115 125 1 /4 - 1 /8 13 /16 8 /32 2 /2 2 /2 3 /32 1 /32 35.3
25
17
1
5
3
9
1
1
5
3
118 150 1 /2 15 /32 9 /32 3 2 /4 5 1 /8 59.3
3
1
17
3
5
5
1
15
120 170 1 /8 16 /2 9 /8 3 3 /32 4 /16 1 /4 70.5
1
CAD
