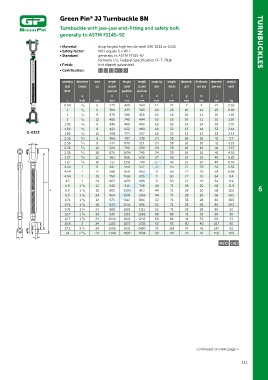

Page 111 - Green Pin Product Catalogue 2019_EN

Green Pin JJ Turnbuckle BN
®
Turnbuckle with jaw-jaw end-fitting and safety bolt,
generally to ASTM F1145-92

• Material: drop forged high tensile steel SAE 1035 or 1045 TURNBUCKLES
• Safety factor: MBL equals 5 x WLL
• Standard: generally to ASTM F1145-92
formerly U.S. Federal Specification FF-T-791b
• Finish: hot dipped galvanized
• Certification: 2.1 2.2 3.1 MTC a CE

working diameter take length length length opening length diameter thickness diameter weight
load thread up closed open closed jaw inside pin jaw eye jaw eye each
limit position position position
a b c d e f g h i
t inch inch mm mm mm mm mm mm mm mm kg
0.54 3 /8 6 273 409 304 12 21 7 9 21 0.55
1 1 /2 6 304 435 343 16 26 10 11 25 0.96
1 1 /2 9 379 588 418 16 26 10 11 25 1.18
1 1 /2 12 455 740 494 16 26 10 11 25 1.50
1.59 5 /8 6 346 469 406 18 32 13 14 33 1.75
1.59 5 /8 9 421 622 480 18 32 13 14 33 2.14
G-6323 1.59 5 /8 12 498 774 557 18 32 13 14 33 2.43
2.36 3 /4 6 369 487 439 24 38 16 16 41 2.7
2.36 3 /4 9 444 640 514 24 38 16 16 41 3.23
2.36 3 /4 12 520 792 590 24 38 16 16 41 3.57
2.36 3 /4 18 670 1096 740 24 38 16 16 41 4.55
3.27 7 /8 12 561 826 638 27 42 19 19 48 5.22
3.27 7 /8 18 713 1132 790 27 42 19 19 48 6.56
4.54 1 6 447 554 532 31 50 22 20 54 5.54
4.54 1 12 598 859 683 31 50 22 20 54 6.96
4.54 1 18 750 1168 835 31 50 22 20 54 8.4
4.5 1 24 903 1470 988 31 50 22 20 54 8.9
1
6.9 1 /4 12 643 916 748 44 71 28 26 68 11.9
1
6.9 1 /4 18 805 1230 910 44 71 28 26 68 13.6 6
6.9 1 /4 24 964 1541 1069 44 71 28 26 68 14.2
1
1
9.71 1 /2 12 675 942 806 52 71 35 28 80 18.5
1
9.71 1 /2 18 825 1244 956 52 71 35 28 80 19.3
9.71 1 /2 24 980 1551 1111 52 71 35 28 80 22
1
12.7 1 /4 18 938 1316 1092 60 86 41 33 90 30
3
3
12.7 1 /4 24 1089 1621 1243 60 86 41 33 90 33
16.8 2 24 1153 1673 1338 63 93 50 40 107 50
1
27.2 2 /2 24 1255 1831 1480 75 114 57 41 143 92
34 2 /4 24 1348 1882 1604 90 110 70 41 158 109
3
INFO CAD

continued on next page >
