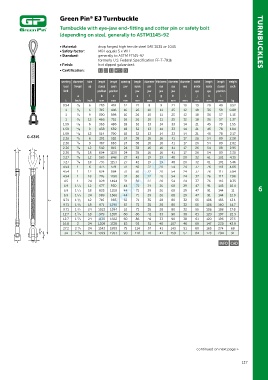

Page 117 - Green Pin Product Catalogue 2019_EN

Green Pin EJ Turnbuckle
®
Turnbuckle with eye-jaw end-fitting and cotter pin or safety bolt
(depending on size), generally to ASTM1145-92

• Material: drop forged high tensile steel SAE 1035 or 1045 TURNBUCKLES
• Safety factor: MBL equals 5 x WLL
• Standard: generally to ASTM F1145-92
formerly U.S. Federal Specification FF-T-791b
• Finish: hot dipped galvanized
• Certification: 2.1 2.2 3.1 MTC a CE

working diameter take length length opening length diameter thickness diameter diameter width length length weight
load thread up closed open jaw inside pin eye eye eye inside inside closed each
limit position position jaw jaw jaw jaw eye eye position
a b c d e f g h i j k l
t inch inch mm mm mm mm mm mm mm mm mm mm mm kg
0.54 3 /8 6 283 418 12 21 8 9 21 10 13 29 49 0.52
1 1 /2 6 315 446 16 26 10 11 25 12 18 36 58 0.88
1 1 /2 9 390 598 16 26 10 11 25 12 18 36 57 1.13
1 1 /2 12 466 751 16 26 10 11 25 12 18 36 57 1.37
1.59 5 /8 6 363 486 18 32 13 14 33 14 21 45 79 1.55
1.59 5 /8 9 438 639 18 32 13 14 33 14 21 45 78 1.84
1.59 5 /8 12 514 790 18 32 13 14 33 14 21 45 78 2.17
G-6315 2.36 3 /4 6 391 510 24 38 16 16 41 17 26 54 89 2.28
2.36 3 /4 9 467 663 24 38 16 16 41 17 26 54 89 2.82
i 2.36 3 /4 12 542 815 24 38 16 16 41 17 26 54 88 2.95
2.36 3 /4 18 694 1120 24 38 16 16 41 17 26 54 89 3.30
3.27 7 /8 12 583 848 27 42 19 19 48 20 32 61 101 4.35
3.27 7 /8 18 735 1153 27 42 19 19 48 20 32 61 101 5.46
4.54 1 6 473 579 31 50 22 20 54 24 37 76 118 4.66
4.54 1 12 624 884 31 50 22 20 54 24 37 76 117 5.94
4.54 1 18 776 1190 31 50 22 20 54 24 37 76 117 7.98
4.5 1 24 928 1494 31 50 22 20 54 24 37 76 116 8.35
6.9 1 /4 12 677 950 44 71 29 26 68 29 47 91 145 10.4
1
1
6.9 1 /4 18 833 1258 44 71 29 26 68 29 47 91 144 11 6
6.9 1 /4 24 989 1566 44 71 29 26 68 29 47 91 144 12.9
1
1
9.71 1 /2 12 716 983 52 71 35 28 80 32 55 106 156 13.1
1
9.71 1 /2 18 871 1290 52 71 35 28 80 32 55 106 160 14.7
9.71 1 /2 24 1023 1594 52 71 35 28 80 32 55 106 158 17.8
1
3
12.7 1 /4 18 979 1356 60 86 41 33 90 38 61 120 197 22.3
3
12.7 1 /4 24 1130 1662 60 86 41 33 90 38 61 120 196 27.5
16.8 2 24 1208 1728 63 93 51 40 107 46 69 147 230 42.9
27.2 2 /2 24 1343 1899 75 114 57 41 143 51 80 165 274 68
1
34 2 /4 24 1399 1953 90 110 70 41 158 57 84 178 284 91
3
INFO CAD

continued on next page >
