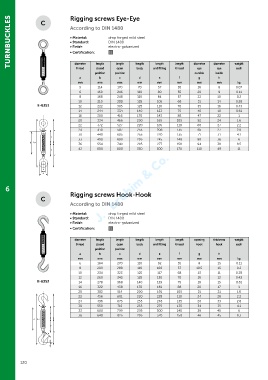

Page 120 - Green Pin Product Catalogue 2019_EN

TURNBUCKLES Rigging screws Eye-Eye

According to DIN 1480

• Material:
drop forged mild steel
• Standard:
DIN 1480
• Finish:
electro-galvanized
• Certification:
2.1
length
diameter
length
length
each
eye
open
thread
eye
body
thread
closed
position position length end fitting length diameter diameter weight

outside
inside
a b c d e f g h
mm mm mm mm mm mm mm mm kg
5 114 170 70 57 35 16 8 0.07
6 160 246 110 80 55 20 9 0.11
8 168 248 110 84 57 22 10 0.2
10 210 300 125 105 68 31 14 0.28
E-6351 12 222 305 125 110 70 35 16 0.43
14 244 334 140 123 75 40 18 0.61
16 300 416 170 143 88 47 22 1
20 334 466 200 165 105 52 24 1.6
22 372 527 220 185 118 60 27 2.2
24 410 587 255 208 135 65 27 2.8
30 440 605 255 220 135 71 31 4.1
33 490 690 295 245 148 88 36 6
36 554 740 295 277 158 94 38 8.5
42 600 800 330 300 170 110 49 11
6
Rigging screws Hook-Hook

According to DIN 1480

• Material: drop forged mild steel
• Standard: DIN 1480
• Finish: electro-galvanized
• Certification: 2.1

diameter length length length length length opening thickness weight
thread closed open body end fitting thread hook hook each
position position
a b c d e f g h
mm mm mm mm mm mm mm mm kg
6 184 270 110 92 55 8 15 0.11
8 200 280 110 100 57 10.5 15 0.2
10 234 323 125 117 68 13 11 0.28
12 260 343 125 130 70 16 13 0.43
E-6352 14 278 368 140 139 75 18 15 0.61
16 322 438 170 161 88 20 17 1
20 382 514 200 191 105 21 21 1.6
22 456 601 220 228 118 24 28 2.2
24 496 673 255 248 135 26 33 2.8
30 550 715 255 275 135 34 35 4.1
33 600 799 295 300 148 38 40 6
36 640 825 295 320 158 46 45 8.3
