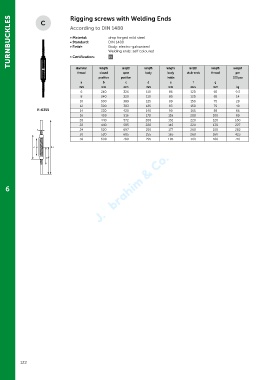

Page 122 - Green Pin Product Catalogue 2019_EN

TURNBUCKLES Rigging screws with Welding Ends

According to DIN 1480

• Material:
drop forged mild steel
• Standard:
DIN 1480
Body: electro-galvanized
• Finish:
Welding ends: self coloured
• Certification:
2.1
diameter
length
length
length
body
body
per
open
thread closed length length length stub-ends thread weight
position position inside 100 pcs
a b c d e f g
mm mm mm mm mm mm mm kg
6 240 326 110 86 120 65 9.3
8 240 320 110 80 120 65 14
10 300 389 125 89 150 75 29
12 300 383 125 83 150 75 40
E-6355 14 330 420 140 90 165 85 66
16 400 516 170 116 200 100 89
20 440 572 200 132 220 120 160
22 440 585 220 145 220 130 227
24 520 697 255 177 260 150 282
30 520 685 255 165 260 160 423
36 600 780 295 185 300 180 710
