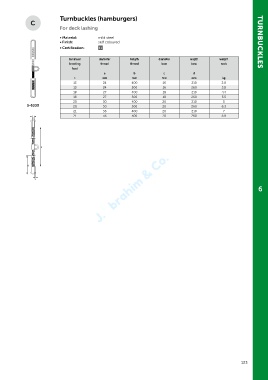

Page 123 - Green Pin Product Catalogue 2019_EN
P. 123
Turnbuckles (hamburgers)
For deck lashing
• Material: mild steel
• Finish: self coloured TURNBUCKLES
• Certification: 2.1
minimum diameter length diameter length weight
breaking thread thread bow bow each
load
a b c d
t mm mm mm mm kg
13 24 400 16 210 2.8
13 24 500 16 260 3.8
18 27 400 18 210 4.4
18 27 500 18 260 5.5
20 30 400 20 210 5
S-6330 20 30 500 20 260 6.3
21 36 400 20 210 7
21 36 500 20 260 8.8
