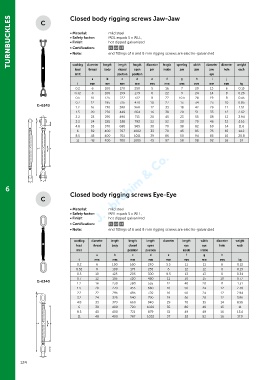

Page 124 - Green Pin Product Catalogue 2019_EN

TURNBUCKLES Closed body rigging screws Jaw-Jaw

mild steel
• Material:
• Safety factor:
MBL equals 5 x WLL,
• Finish:
hot dipped galvanized
• Certification:
2.1 2.2 CE

end fittings of 6 and 8 mm rigging screws are electro-galvanized
• Note:
working
load diameter length length length diameter length opening width diameter diameter weight
jaw
closed
inside
jaw
open
body
jaw
each
pin
thread
hole
limit position position eye
a b c d e f g h i j
t mm mm mm mm mm mm mm mm mm mm kg
0.2 6 100 170 250 5 16 7 20 13 6 0.15
0.32 8 108 199 279 6 22 9 24 14 8 0.26
0.5 10 125 222 312 8 22 10.5 28 19 8 0.45
0.7 12 195 315 470 10 27 13 34 23 10 0.85
G-6343
1.2 16 230 388 568 12 33 18 42 29 11 1.51
1.5 20 270 449 654 16 38 20 51 33 12 2.62
2.2 22 295 490 715 20 45 25 55 38 12 3.94
3.2 24 325 538 793 22 52 30 70 46 12 5.16
4.8 33 370 680 965 30 70 38 82 60 14 11.6
6 39 400 707 1002 33 70 45 85 76 15 14.2
8.5 45 400 761 1011 39 86 50 94 85 16 20.8
11 48 400 780 1005 45 97 58 98 92 16 24
j
6
Closed body rigging screws Eye-Eye

• Material: mild steel
• Safety factor: MBL equals 5 x WLL,
• Finish: hot dipped galvanized
• Certification: 2.1 2.2 CE

• Note: end fittings of 6 and 8 mm rigging screws are electro-galvanized
working diameter length length length diameter length width diameter weight
load thread body closed open eye eye hole each
limit position position inside inside
a b c d e f g h
t mm mm mm mm mm mm mm mm kg
0.2 6 100 160 240 5.5 11 11 6 0.12
0.32 8 108 175 255 6 12 12 8 0.19
0.5 10 125 205 300 8.5 13 13 8 0.34
0.7 12 195 320 480 11 30 15 10 0.77
G-6340
1.2 16 230 380 555 12 40 20 11 1.31
1.5 20 270 455 660 16 50 24 12 2.36
2.2 22 295 495 720 16 50 24 12 2.94
3.2 24 325 540 790 19 56 28 12 3.86
4.8 33 370 660 940 29 70 35 14 8.95
6 39 400 720 1020 35 80 40 15 11
8.5 45 400 721 879 31 49 49 16 13.4
11 48 400 767 1032 37 52 52 16 17.9
h
