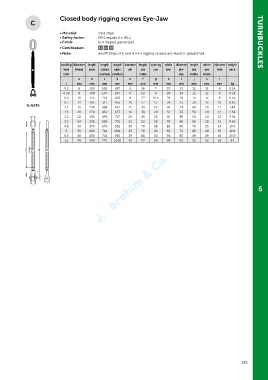

Page 125 - Green Pin Product Catalogue 2019_EN

Closed body rigging screws Eye-Jaw

• Material: mild steel
• Safety factor: MBL equals 5 x WLL,
• Finish: hot dipped galvanized TURNBUCKLES
• Certification: 2.1 2.2 CE

• Note: end fittings of 6 and 8 mm rigging screws are electro-galvanized
working diameter length length length diameter length opening width diameter length width diameter weight
load thread body closed open pin jaw jaw jaw jaw eye eye hole each
limit position position inside eye inside inside
a b c d e f g h i j k l
t mm mm mm mm mm mm mm mm mm mm mm mm kg
0.2 6 100 165 247 5 16 7 20 13 11 11 6 0.14
0.32 8 108 187 267 6 22 9 24 14 12 12 8 0.24
0.5 10 125 214 306 8 22 10.5 28 19 13 13 8 0.53
0.7 12 195 317 475 10 27 13 34 23 30 15 10 0.83
G-6345
1.2 16 230 384 562 12 33 18 42 29 40 20 11 1.49
1.5 20 270 452 657 16 38 20 51 33 50 24 12 2.54
2.2 22 295 493 717 20 45 25 55 38 50 24 12 3.34
3.2 24 325 539 791 22 52 30 70 46 56 28 12 4.65
4.8 33 370 670 952 30 70 38 82 60 70 35 14 10.5
6 39 400 714 1011 33 70 45 85 76 80 40 15 12.8
8.5 45 400 741 945 39 86 50 94 85 49 49 16 20.8
11 48 400 774 1018 45 97 58 98 92 52 52 16 24
