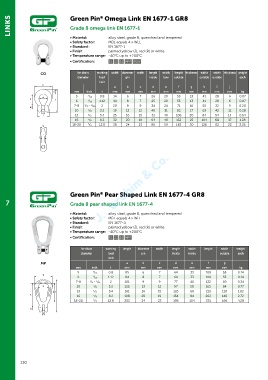

Page 130 - Green Pin Product Catalogue 2019_EN

LINKS Green Pin Omega Link EN 1677-1 GR8
®
Grade 8 omega link EN 1677-1

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard : EN 1677-1
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b DGUV

CO for chain working width diameter width length width length thickness width width thickness weight
diameter load pin inside bow outside outside outside each
limit
h
a b c d e f g h i j
h a mm inch t mm mm mm mm mm mm mm mm mm mm kg
5 3 0.8 14 6 7 26 20 53 13 41 28 6 0.07
e /16
d a f 6 7 /32 1.12 14 8 7 25 20 53 13 41 28 6 0.07
e 1 5
b d f 7-8 /4 - /16 2 20 9 9 34 24 71 16 55 32 9 0.20
10 3 3.2 19 13 12 40 31 82 17 63 42 11 0.28
c /8
b i 13 1 /2 5.4 25 16 15 51 40 106 20 84 54 14 0.64
g c 16 5 8.2 32 20 19 64 48 132 25 104 68 17 1.28
i /8
g 18-20 3 /4 12.8 38 24 23 80 59 163 30 126 82 22 2.25
j
j

Green Pin Pear Shaped Link EN 1677-4 GR8
®
7 Grade 8 pear shaped link EN 1677-4

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard: EN 1677-4
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b

for chain working length diameter width length width length width weight
diameter load pin inside inside outside each
limit
MP a b c d e f g
mm inch t mm mm mm mm mm mm mm kg
5 3 /16 0.8 85 6 7 64 33 109 55 0.14
g
6 7 /32 1.12 84 8 7 64 33 109 55 0.14
7-8 1 /4 - /16 2 101 9 9 77 40 132 69 0.34
5
e 10 3 /8 3.2 125 13 12 97 50 165 84 0.77
df 13 1 /2 5.4 161 16 15 125 66 213 110 1.62
a
16 5 /8 8.2 198 20 19 154 84 262 140 2.72
18-20 3 /4 12.8 253 24 23 198 104 331 166 4.28
b
c

130
