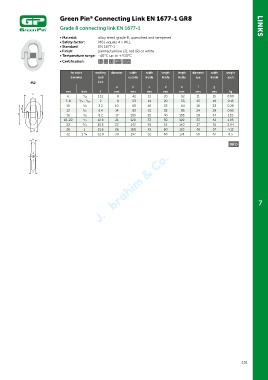

Green Pin Connecting Link EN 1677-1 GR8
®
Grade 8 connecting link EN 1677-1 LINKS
• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard: EN 1677-1
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b DGUV
for chain working diameter width width length length diameter width weight
diameter load outside inside inside inside eye inside each
MJ limit
a b c d e f g
mm inch t mm mm mm mm mm mm mm kg
b 7
c 6 /32 1.12 8 42 11 20 52 11 15 0.09
b 7-8 1 5 2 9 53 14 20 55 13 19 0.15
c /4 - /16
10 3 /8 3.2 10 66 18 23 64 18 23 0.28
d
13 1 /2 5.4 14 83 21 32 85 24 28 0.63
e d
16 5 /8 8.2 17 103 25 40 105 28 34 1.16
e 18-20 3 /4 12.8 21 120 33 50 129 33 42 1.95
22 7 /8 15.5 23 143 40 55 140 37 51 2.94
g 26 1 21.6 26 160 45 60 153 46 57 4.12
1
a g 32 1 /4 32.8 39 197 52 68 174 56 67 8.3
a
