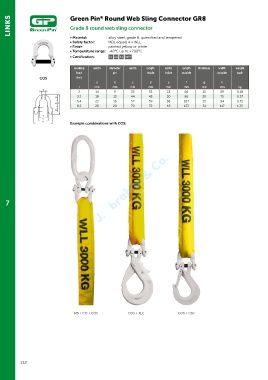

LINKS Green Pin Round Web Sling Connector GR8
®
Grade 8 round web sling connector
• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted yellow or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b
working width diameter width length width length thickness width weight
load pin inside inside outside outside each
COS limit
a b c d e f g h
t mm mm mm mm mm mm mm mm kg
g
2 14 9 33 35 23 66 15 59 0.18
a 3.2 18 13 44 45 30 86 20 75 0.37
5.4 22 16 57 59 38 107 25 94 0.72
df
8.2 28 20 70 72 48 133 31 117 1.35
b
e
c
h
Example combinations with COS:
7
MS + CO + COS COS + XLC COS + CSC
