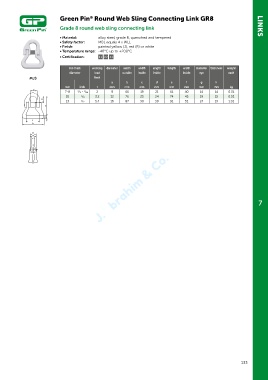

Page 133 - Green Pin Product Catalogue 2019_EN
P. 133
Green Pin Round Web Sling Connecting Link GR8
®
Grade 8 round web sling connecting link LINKS
• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1
for chain working diameter width width length length width diameter thickness weight
diameter load outside inside inside inside eye each
MJS limit
a b c d e f g h
mm inch t mm mm mm mm mm mm mm mm kg
c
7-8 1 /4 - /16 2 9 66 19 21 61 40 14 14 0.31
5
c
10 3 /8 3.2 12 76 25 24 74 45 19 15 0.51
d
13 1 /2 5.4 16 87 30 30 91 51 24 19 1.01
d
e
e
h
f h
b
f
g b
a
g
a
7
