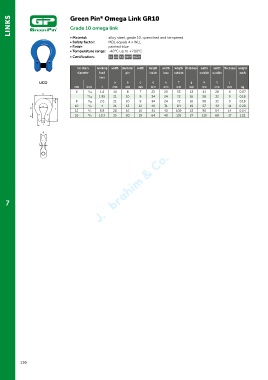

Page 136 - Green Pin Product Catalogue 2019_EN
P. 136
®
LINKS Green Pin Omega Link GR10
Grade 10 omega link
• Material: alloy steel, grade 10, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted blue
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b DGUV
for chain working width diameter width length width length thickness width width thickness weight
diameter load pin inside bow outside outside outside each
limit
UCO a b c d e f g h i j
mm inch t mm mm mm mm mm mm mm mm mm mm kg
6 7 /32 1.4 14 8 7 25 20 53 13 41 28 6 0.07
h
9 1.95 21 10 9 34 24 72 16 58 32 9 0.18
/32
h
a 8 5 /16 2.6 21 10 9 34 24 72 16 58 32 9 0.18
e a 10 3 /8 4 21 13 12 40 31 84 19 67 42 11 0.28
d f
e 13 1 /2 6.8 28 16 15 51 40 109 23 90 54 14 0.64
d f
b 16 5 /8 10.3 35 20 19 64 48 135 27 110 68 17 1.21
b c
i
c
g
i
g
j
j
7
136
