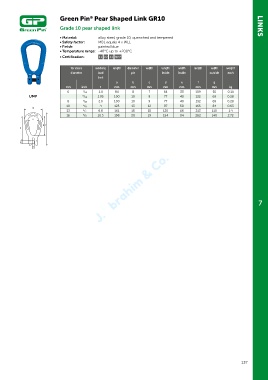

Green Pin Pear Shaped Link GR10
®
Grade 10 pear shaped link LINKS
• Material: alloy steel, grade 10, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted blue
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b
for chain working length diameter width length width length width weight
diameter load pin inside inside outside each
limit
a b c d e f g
mm inch t mm mm mm mm mm mm mm kg
6 7 /32 1.4 84 8 7 64 33 109 55 0.14
UMP 9 /32 1.95 100 10 9 77 40 132 69 0.28
8 5 /16 2.6 100 10 9 77 40 132 69 0.28
10 3 4 125 13 12 97 50 165 84 0.63
g /8
13 1 /2 6.8 161 16 15 125 66 213 110 1.4
16 5 /8 10.3 198 20 19 154 84 262 140 2.72
e
df
a
b
c
