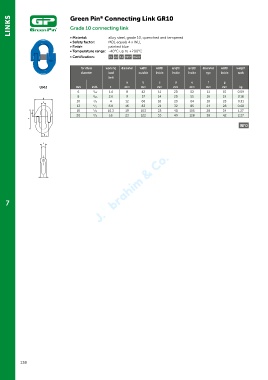

Page 138 - Green Pin Product Catalogue 2019_EN
P. 138
LINKS Green Pin Connecting Link GR10
®
Grade 10 connecting link
• Material: alloy steel, grade 10, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted blue
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b DGUV
for chain working diameter width width length length diameter width weight
diameter load outside inside inside inside eye inside each
limit
a b c d e f g
UMJ mm inch t mm mm mm mm mm mm mm kg
6 7 /32 1.4 8 42 11 20 52 11 15 0.09
8 5 /16 2.6 9 57 14 20 55 16 19 0.18
b
10 3 /8 4 12 66 18 23 64 18 23 0.31
c b
c 13 1 /2 6.8 16 83 21 32 85 24 28 0.68
16 5 /8 10.3 19 103 25 40 105 28 34 1.27
d
20 3 /4 16 23 122 33 49 128 38 42 2.27
e d
e
INFO
g
a g
a
f
f
7
138
