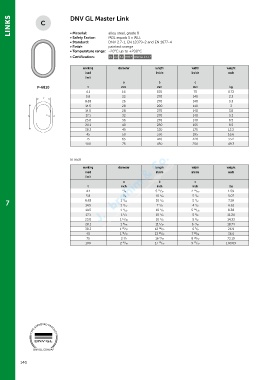

Page 140 - Green Pin Product Catalogue 2019_EN

LINKS DNV GL Master Link

• Material:
• Safety Factor: alloy steel, grade 8
MBL equals 5 x WLL
• Standard: DNV 2.7-1, EN 12079-2 and EN 1677-4
• Finish: painted orange
• Temperature range: -20°C up to +200°C
• Certification: 2.1 2.2 3.1 MTC b DNV GL 2.7-1 a

working diameter length width weight
load inside inside each
limit
a b c
P-6810 t mm mm mm kg
4.1 16 150 75 0.72
5.8 22 270 140 2.3
8.83 26 270 140 3.3
14.5 28 200 110 3
14.5 28 270 140 3.8
17.1 32 270 140 5.1
23.0 36 270 140 6.5
28.1 40 280 155 8.5
38.3 45 320 175 12.2
45 50 350 195 16.6
75 65 410 220 33.2
100 75 450 250 49.3

In inch
working diameter length width weight
load inside inside each
limit
a b c
t inch inch inch lbs
4.1 5 /8 5 /32 2 /16 1.59
29
15
5
5.8 7 /8 10 /8 5 /2 5.07
1
7 8.83 1 /32 10 /8 4 /2 7.28
1
1
5
5 /2
6.61
3
1
7
14.5
1 /32
7 /8
14.5 1 /32 10 /8 5 /32 8.38
16
5
3
1
5
1
17.1 1 /4 10 /8 5 /2 11.24
23.0 1 /32 10 /8 5 /2 14.33
1
5
13
3
28.1 1 /16 11 /32 6 /32 18.74
1
9
38.3 1 /32 12 /32 6 /8 26.9
25
7
19
11
31
25
45 1 /32 13 /32 7 /16 36.6
75 2 /2 16 /32 8 /32 73.19
1
21
5
23
27
15
100 2 /16 17 /32 9 /32 108.69
