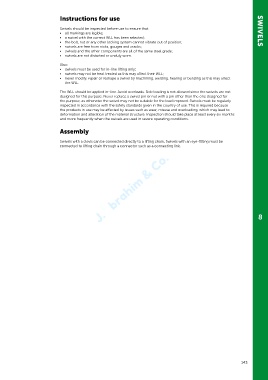

Page 143 - Green Pin Product Catalogue 2019_EN

Instructions for use

Swivels should be inspected before use to ensure that:
• all markings are legible; SWIVELS
• a swivel with the correct WLL has been selected;
• the bolt, nut or any other locking system cannot vibrate out of position;
• swivels are free from nicks, gouges and cracks;
• swivels and the other components are all of the same steel grade;
• swivels are not distorted or unduly worn.
Also:
• swivels must be used for in-line lifting only;
• swivels may not be heat treated as this may affect their WLL;
• never modify, repair or reshape a swivel by machining, welding, heating or bending as this may affect
the WLL.

The WLL should be applied in-line. Avoid overloads. Side loading is not allowed since the swivels are not
designed for this purpose. Never replace a swivel pin or nut with a pin other than the one designed for
the purpose, as otherwise the swivel may not be suitable for the load imposed. Swivels must be regularly
inspected in accordance with the safety standards given in the country of use. This is required because
the products in use may be affected by issues such as wear, misuse and overloading, which may lead to
deformation and alteration of the material structure. Inspection should take place at least every six months
and more frequently when the swivels are used in severe operating conditions.

Assembly

Swivels with a clevis can be connected directly to a lifting chain. Swivels with an eye-fitting must be
connected to lifting chain through a connector such as a connecting link.
