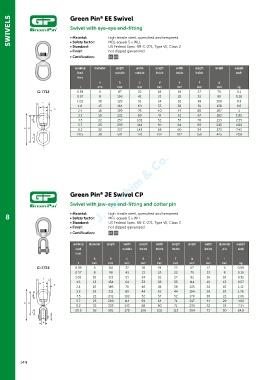

Page 144 - Green Pin Product Catalogue 2019_EN

SWIVELS Green Pin EE Swivel
®
Swivel with eye-eye end-fitting

high tensile steel, quenched and tempered
• Material:
• Safety factor:
• Standard:
US Federal Spec. RR-C-271, Type VII, Class 2
• Finish: MBL equals 5 x WLL
hot dipped galvanized
• Certification: 2.1 2.2

working diameter length width length width length length weight
load outside outside inside inside inside each
limit
a b c d e f g
t mm mm mm mm mm mm mm kg
G-7713 0.39 6 87 32 18 19 27 75 0.1
0.57 8 106 41 21 25 32 90 0.18
1.02 10 129 51 24 32 38 109 0.3
1.6 13 164 64 33 38 51 138 0.6
2.4 16 199 76 40 44 60 167 1
3.3 19 221 89 44 51 67 183 1.82
4.5 22 257 102 52 57 78 213 2.55
5.7 25 295 114 59 64 89 245 4.06
8.2 32 337 143 68 80 94 273 7.43
20.5 38 501 178 102 102 150 425 20.8

Green Pin JE Swivel CP
®
Swivel with jaw-eye end-fitting and cotter pin

8 • Material: high tensile steel, quenched and tempered
MBL equals 5 x WLL
• Safety factor:
• Standard: US Federal Spec. RR-C-271, Type VII, Class 3
• Finish: hot dipped galvanized
• Certification: 2.1 2.2

working diameter length width length width length length width diameter weight
load outside inside inside inside inside pin each
limit
a b c d e f g h i
t mm mm mm mm mm mm mm mm mm kg
G-7723 0.39 6 84 32 18 19 22 67 12 6 0.09
0.57 8 98 41 21 25 22 75 13 8 0.16
1.02 10 121 51 24 32 27 92 16 10 0.32
1.6 13 154 64 33 38 33 114 19 13 0.57
2.4 16 186 76 40 44 38 135 24 16 1.12
3.3 19 211 89 44 51 44 154 29 19 1.76
4.5 22 242 102 52 57 52 178 30 22 2.66
5.7 25 290 114 59 64 71 217 44 29 4.02
8.2 32 329 143 68 80 71 230 52 35 7.14
20.5 38 501 178 106 102 113 364 73 50 24.8

144
