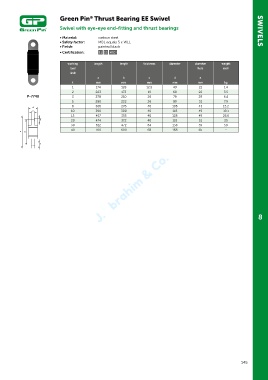

Green Pin Thrust Bearing EE Swivel
®
Swivel with eye-eye end-fitting and thrust bearings SWIVELS

• Material: carbon steel
• Safety factor: MBL equals 5 x WLL
• Finish: painted black
• Certification: 2.1 2.2 MTC a

working length length thickness diameter diameter weight
load hole each
limit
a b c d e
t mm mm mm mm mm kg
1 174 128 12.5 49 21 1.4
2 223 173 19 68 22 3.5
P-7740 3 278 210 26 79 29 6.4
5 290 222 26 89 31 7.9
8 366 276 40 106 43 15.2
10 390 300 40 118 49 19.1
15 457 355 40 128 49 26.6
20 474 372 40 118 51 25
30 612 472 64 138 59 50
40 760 600 68 168 65 -
