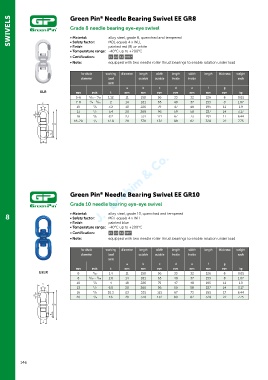

SWIVELS                   Green Pin  Needle Bearing Swivel EE GR8
                                              ®
                                Grade 8 needle bearing eye-eye swivel

                                • Material:
                                                 alloy steel, grade 8, quenched and tempered
                                • Safety factor:
                                                 MBL equals 4 x WLL
                                                 painted red (R) or white
                                • Finish:
                                • Temperature range:  -40°C up to +200°C
                                • Certification:   2.1 2.2 3.1 MTC  b



                                • Note:          equipped with two needle roller thrust bearings to enable rotation under load
                                     for chain  working  diameter  length  width  length  width  length  thickness  weight
                                     diameter    load          outside  outside  inside  inside            each
                                                 limit
                                                         a      b       c      d      e      f      g
                   ELR             mm     inch    t     mm      mm     mm     mm     mm     mm      mm     kg
                                            7
                                   5-6    3 /16 -  /32  1.12  11  150  56     33      32    126     6      0.61
                                   7-8    1  5    2      14     181    65     40      37    153     8      1.07
                    c                    /4 -  /16
                    a              10       3 /8  3.2    18    226     79     47      48    195     11     1.9
                                   13       1 /2  5.4    20    268     96     59      58    227     14     3.17
                g
                                   16       5 /8  8.2    23     331    121    67      73    281     17     6.44
                                  18-20     3 /4  12.8   28     378    132    88      82    328     22     7.75
                        f  b
                       d
                    e












                                Green Pin  Needle Bearing Swivel EE GR10
                                              ®
                                Grade 10 needle bearing eye-eye swivel

   8                            • Material:      alloy steel, grade 10, quenched and tempered
                                • Safety factor:
                                                 MBL equals 4 x WLL
                                • Finish:        painted blue
                                • Temperature range:  -40°C up to +200°C
                                • Certification:   2.1 2.2 3.1 MPI  b



                                • Note:          equipped with two needle roller thrust bearings to enable rotation under load
                                     for chain  working  diameter  length  width  length  width  length  thickness  weight
                                     diameter    load          outside  outside  inside  inside            each
                                                 limit
                                                         a      b       c      d      e      f      g
                                   mm     inch    t     mm      mm     mm     mm     mm     mm      mm     kg
                  UELR             6        7 /32  1.4   11     150    56     33      32    126     6      0.61
                                   8      9 /32 -  /16  2.6  14  181   65     40      37    153     8      1.07
                                            5
                    c              10       3 /8  4      18    226     79     47      48    195     11     1.9
                    a              13       1 /2  6.8    20    268     96     59      58    227     14     3.17
                                   16       5 /8  10.3   23     331    121    67      73    281     17     6.44
                g
                                   20       3 /4  16     28     378    132    88      82    328     22     7.75
                        f  b

                       d
                    e
