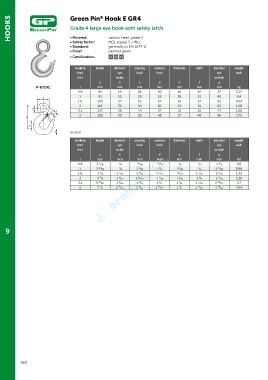

Page 150 - Green Pin Product Catalogue 2019_EN

HOOKS Green Pin Hook E GR4
®
Grade 4 large eye hook with safety latch

• Material:
• Safety factor: carbon steel, grade 4
MBL equals 5 x WLL
• Standard: generally to EN 1677-5
• Finish: painted green
• Certification: 2.1 2.2 3.1

working length diameter opening opening thickness width diameter weight
load eye hook hook eye each
limit inside outside
a b c d e f g
P-6714C t mm mm mm mm mm mm mm kg
0.8 81 19 24 20 16 19 37 0.27
1 91 22 26 22 18 22 45 0.4
1.6 105 27 32 27 20 27 52 0.64
2 124 32 34 30 24 31 62 1.08
3.2 147 39 44 37 31 36 74 1.68
5 190 50 55 48 37 48 96 3.75

In inch
working length diameter opening opening thickness width diameter weight
load eye hook hook eye each
limit inside outside
a b c d e f g
t inch inch inch inch inch inch inch lbs
0.8 3 /16 3 /4 15 /16 25 /32 5 /8 3 /4 1 /2 0.6
3
1
1
1 3 /32 7 /8 1 /32 7 /8 23 /32 7 /8 1 /32 0.88
25
19
1.6 4 /8 1 /32 1 /32 1 /32 25 /32 1 /32 2 /32 1.32
1
3
9
3
3
1
3
11
7
1
2 4 /8 1 /32 1 /32 1 /16 15 /16 1 /4 2 /16 2.16
9
7
3.2 5 /32 1 /16 1 /4 1 /2 1 /4 1 /16 2 /32 3.7
1
1
7
9
3
25
29
1
25
31
29
5
5 7 /2 1 /32 2 /32 1 /32 1 /2 1 /32 3 /32 7.94
29
1
9
