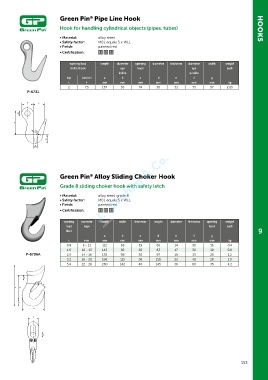

Page 153 - Green Pin Product Catalogue 2019_EN

Green Pin Pipe Line Hook
®
Hook for handling cylindrical objects (pipes, tubes) HOOKS

• Material: alloy steel
• Safety factor: MBL equals 5 x WLL
• Finish: painted red
• Certification: 2.1 2.2 3.1

working load length diameter opening diameter thickness diameter width weight
limit at hook eye hook eye each
inside outside
top bottom a b c d e f g
t t mm mm mm mm mm mm mm kg
2 7.5 167 35 74 30 31 73 57 2.65
P-6731

Green Pin Alloy Sliding Choker Hook
®
Grade 8 sliding choker hook with safety latch

• Material: alloy steel, grade 8
• Safety factor: MBL equals 5 x WLL
• Finish: painted red
• Certification: 2.1 2.2 3.1

working diameter length width thickness length diameter thickness opening weight
load rope hook each
limit 9
a b c d e f g
t mm mm mm mm mm mm mm mm kg
0.8 6 - 11 112 63 19 65 14 30 16 0.4
1.6 10 - 13 143 82 26 83 17 30 19 0.8
P-6706A 2.5 14 - 16 170 98 30 97 19 33 25 1.2
3.2 16 - 20 196 115 36 110 22 40 28 1.9
5.4 22 - 26 260 142 46 145 36 60 35 4.2

153
