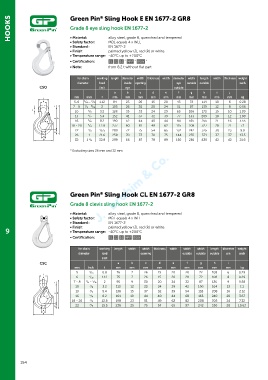

Page 154 - Green Pin Product Catalogue 2019_EN

HOOKS Green Pin Sling Hook E EN 1677-2 GR8
®
Grade 8 eye sling hook EN 1677-2

• Material:
MBL equals 4 x WLL
• Safety factor: alloy steel, grade 8, quenched and tempered
• Standard : EN 1677-2
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b * DGUV *
*

• Note: from 8.2 t without flat part
for chain working length diameter width thickness width diameter width length width thickness weight
diameter load inside opening eye outside outside each
CSO limit eye outside
a b c d e f g h i j
mm inch t mm mm mm mm mm mm mm mm mm mm kg
f
b 5-6 3 /16 - /32 1.12 84 23 26 15 20 43 72 114 10 6 0.28
7
5
i 7 - 8 1 /4 - /16 2 103 26 30 20 24 51 87 139 12 8 0.56
j
10 3 /8 3.2 128 35 33 24 29 65 106 172 15 10 1.09
13 1 /2 5.4 152 41 37 32 39 77 133 209 18 12 1.98
a h
c 16 5 /8 8.2 190 52 44 40 44 94 165 255 21 16 3.55
18 - 20 3 /4 12.8 237 60 61 49 62 115 208 327 28 21 7.1
22 7 15.5 280 72 75 54 65 132 242 375 30 23 9.9
e /8
26 1 21.6 259 70 73 70 75 144 235 371 37 37 13.3
d
g 32 1 /4 32.8 299 66 87 78 89 150 281 430 42 42 21.6
1
* Excluding sizes 26 mm and 32 mm

Green Pin Sling Hook CL EN 1677-2 GR8
®
Grade 8 clevis sling hook EN 1677-2

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard : EN 1677-2
• Finish: painted yellow (J), red (R) or white
9 • Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b DGUV

for chain working length width width thickness width width width length diameter weight
diameter load opening outside outside outside pin each
limit
CSC a b c d e f g h i
mm inch t mm mm mm mm mm mm mm mm mm kg
5 3 /16 0.8 76 7 26 15 20 28 72 108 6 0.29
f
b 6 7 /32 1.12 75 7 26 15 20 28 72 108 8 0.29
7 - 8 1 5 2 95 9 30 20 24 32 87 136 9 0.58
i /4 - /16
10 3 /8 3.2 113 12 33 24 29 42 106 164 13 1.1
13 1 /2 5.4 138 15 37 32 39 54 133 208 16 2.12
a h
c 16 5 /8 8.2 161 19 44 40 44 68 165 240 20 3.67
18 - 20 3 /4 12.8 198 23 61 49 62 82 208 305 24 7.32
e 22 7 /8 15.5 236 25 75 54 65 97 242 350 28 10.63
d
g
