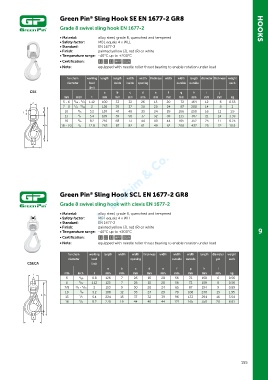

Page 155 - Green Pin Product Catalogue 2019_EN

Green Pin Sling Hook SE EN 1677-2 GR8
®
Grade 8 swivel sling hook EN 1677-2 HOOKS

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard : EN 1677-2
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b DGUV

• Note: equipped with needle roller thrust bearing to enable rotation under load
for chain working length length width width thickness width width length diameter thickness weight
diameter load inside inside opening outside outside each
limit
CSE a b c d e f g h i j
mm inch t mm mm mm mm mm mm mm mm mm mm kg
5 - 6 3 7 1.12 100 33 32 26 15 20 72 164 12 6 0.55
c /16 - /32
7 - 8 1 /4 - /16 2 126 39 37 30 20 24 87 200 14 8 1
5
i
j b 10 3 /8 3.2 159 47 48 33 24 29 106 250 16 11 1.9
13 1 /2 5.4 189 59 58 37 32 39 133 307 21 14 3.39
16 5 /8 8.2 216 68 73 44 40 44 165 352 25 17 6.25
a h 18 - 20 3 /4 12.8 263 87 82 61 49 62 208 437 25 22 10.5
d
f
e
g

Green Pin Sling Hook SCL EN 1677-2 GR8
®
Grade 8 swivel sling hook with clevis EN 1677-2

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard : EN 1677-2
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C 9
• Certification: 2.1 2.2 3.1 MPI b DGUV

• Note: equipped with needle roller thrust bearing to enable rotation under load
for chain working length width width thickness width width width length diameter weight
diameter load opening outside outside pin each
CSECA limit
a b c d e f g h i
mm inch t mm mm mm mm mm mm mm mm mm kg
f
b 5 3 /16 0.8 126 7 26 15 20 56 72 159 6 0.56
i 6 7 /32 1.12 125 7 26 15 20 56 72 159 8 0.56
7/8 1 /4 - /16 2 153 9 30 20 24 65 87 194 9 0.99
5
10 /8 3.2 188 12 33 24 29 79 106 240 13 1.95
3
a h
13 1 /2 5.4 224 15 37 32 39 96 133 294 16 3.54
16 5 /8 8.2 270 19 44 40 44 121 165 350 20 6.61

155
