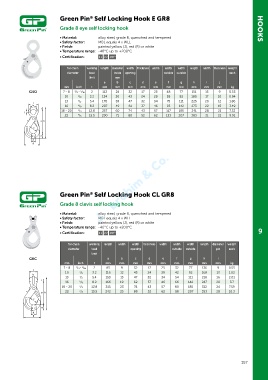

Page 157 - Green Pin Product Catalogue 2019_EN

Green Pin Self Locking Hook E GR8
®
Grade 8 eye self locking hook HOOKS

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 MPI b

for chain working length diameter width thickness width width width length width thickness weight
diameter load inside opening outside outside each
limit eye
a b c d e f g h i j
mm inch t mm mm mm mm mm mm mm mm mm mm kg
GKO 7 - 8 1 /4 - /16 2 113 24 32 17 25 48 77 151 13 9 0.53
5
10 3 /8 3.2 134 30 43 24 29 59 92 180 17 10 0.94
13 1 /2 5.4 170 39 47 32 34 75 111 225 20 12 1.86
f
b 16 5 /8 8.2 207 49 61 37 46 93 142 273 22 15 3.49
i
j 18 - 20 3 /4 12.8 257 60 74 43 57 117 185 341 28 21 7.33
22 7 /8 15.5 290 71 88 52 62 133 207 383 31 21 9.91
a h
c
e
d
g

Green Pin Self Locking Hook CL GR8
®
Grade 8 clevis self locking hook

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 MPI b 9

for chain working length width width thickness width width width length diameter weight
diameter load opening outside outside pin each
limit
GKC a b c d e f g h i
mm inch t mm mm mm mm mm mm mm mm mm kg
7 - 8 1 /4 - /16 2 85 9 32 17 25 32 77 136 9 0.55
5
f
10 3 3.2 116 12 43 24 29 42 92 168 13 1.02
b /8
13 1 /2 5.4 153 15 47 32 34 54 111 218 16 2.01
i
16 5 /8 8.2 166 19 62 37 46 66 142 247 20 3.7
18 - 20 3 /4 12.8 215 23 74 43 57 80 185 312 24 7.59
a h 22 7 /8 15.5 242 25 88 52 62 98 207 353 28 10.3
c
e
d
g

157
