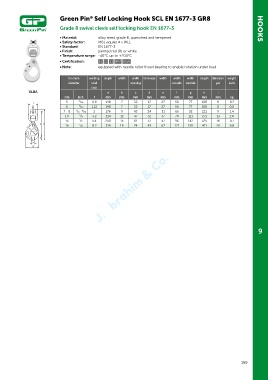

Green Pin Self Locking Hook SCL EN 1677-3 GR8
®
Grade 8 swivel clevis self locking hook EN 1677-3 HOOKS

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard: EN 1677-3
• Finish: painted red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b DGUV

• Note: equipped with needle roller thrust bearing to enable rotation under load
for chain working length width width thickness width width width length diameter weight
diameter load opening outside outside pin each
limit
XLBA a b c d e f g h i
mm inch t mm mm mm mm mm mm mm mm mm kg
5 3 0.8 148 7 32 17 27 56 77 188 6 0.7
f /16
b 6 7 /32 1.12 148 7 32 17 27 56 77 188 8 0.8
5
i 7 - 8 1 /4 - /16 2 176 9 43 24 31 65 92 221 9 1.4
10 3 /8 3.2 214 12 47 32 37 79 111 271 13 2.6
13 1 /2 5.4 250 15 61 37 47 96 142 325 16 4.7
a h
16 5 /8 8.2 319 19 74 43 67 121 185 411 20 9.8
c
e
d
g
