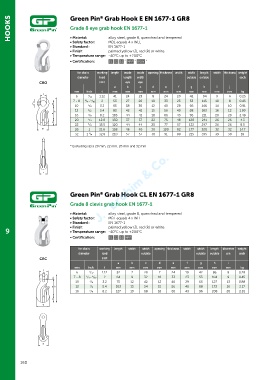

Page 160 - Green Pin Product Catalogue 2019_EN

®
HOOKS Green Pin Grab Hook E EN 1677-1 GR8
Grade 8 eye grab hook EN 1677-1

• Material:
MBL equals 4 x WLL
• Safety factor: alloy steel, grade 8, quenched and tempered
• Standard : EN 1677-1
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b * DGUV *
*

for chain working length inside inside opening thickness width width length width thickness weight
diameter load length width outside outside each
CRO limit eye eye
a b c d e f g h i j
mm inch t mm mm mm mm mm mm mm mm mm mm kg
c
6 7 /32 1.12 41 24 23 8 24 20 42 94 9 6 0.25
c
7 - 8 1 /4 - /16 2 53 27 26 10 33 23 53 115 10 8 0.45
5
j b
10 3 /8 3.2 65 38 36 12 40 29 66 146 14 10 0.91
j b
d h 13 1 /2 5.4 83 42 41 15 56 40 88 183 16 12 1.99
a
d h 16 5 /8 8.2 103 44 41 18 66 43 96 211 20 20 2.49
a
20 3 /4 12.8 130 37 37 22 75 48 128 241 26 26 4.3
f
22 7 /8 15.5 120 44 44 25 77 57 132 247 26 26 8.5
f
g 26 1 21.6 158 46 46 30 100 82 177 320 32 32 14.7
i g 32 1 /4 32.8 210 57 57 38 91 88 215 395 39 39 18
1
i
* Excluding sizes 20 mm, 22 mm, 26 mm and 32 mm
e
e

Green Pin Grab Hook CL EN 1677-1 GR8
®
Grade 8 clevis grab hook EN 1677-1

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard : EN 1677-1
• Finish: painted yellow (J), red (R) or white
9 • Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b

for chain working length width width opening thickness width width length diameter weight
diameter load outside outside outside pin each
CRC limit
a b c d e f g h i
mm inch t mm mm mm mm mm mm mm mm mm kg
c
b 6 7 /32 1.12 52 7 28 7 24 19 42 86 8 0.28
c
b 7 - 8 1 5 2 64 9 32 10 33 23 53 104 9 0.45
i /4 - /16
i 10 3 /8 3.2 75 12 42 12 40 29 66 127 13 0.88
d a h 13 1 /2 5.4 103 15 54 15 56 40 88 173 16 2.17
d a h 16 5 /8 8.2 127 19 68 18 65 43 96 208 20 2.81
f
g f
g

e
e
