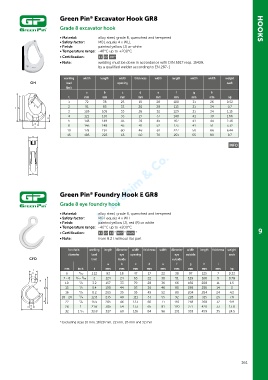

Page 161 - Green Pin Product Catalogue 2019_EN

Green Pin Excavator Hook GR8
®
Grade 8 excavator hook HOOKS

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted yellow (J) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 MPI b

• Note: welding must be done in accordance with DIN 5817 resp. 15429,
by a qualified welder according to EN 287-1
working width length width thickness width length width width weight
GH load opening each
limit
a b c d e f g h
t mm mm mm mm mm mm mm mm kg
1 72 78 25 19 28 108 31 26 0.52
c
f b 2 91 83 33 20 28 113 31 34 0.7
3 105 105 33 26 32 129 31 34 1.15
4 121 130 35 27 37 148 41 38 1.66
e
5 138 149 43 28 45 167 41 44 2.36
d
a 8 145 148 43 41 52 173 41 51 3.32
10 178 197 60 46 61 227 50 66 6.44
15 185 223 65 60 70 251 55 80 9.7
INFO

g

Green Pin Foundry Hook E GR8
®
Grade 8 eye foundry hook

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted yellow (J), red (R) or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b * DGUV * 9
*

• Note: from 8.2 t without flat part
for chain working length diameter width thickness width diameter width length thickness weight
diameter load eye opening eye outside each
CFO limit inside outside
a b c d e f g h i
mm inch t mm mm mm mm mm mm mm mm mm kg
f
b 6 7 /32 1.12 93 18 47 17 22 38 97 125 7 0.33
7 - 8 1 /4 - /16 2 124 24 63 22 30 51 129 166 9 0.78
5
i
10 3 /8 3.2 157 33 79 28 36 66 160 208 11 1.5
c ah 13 1 /2 5.4 190 44 93 36 46 85 198 256 14 3
16 5 /8 8.2 205 35 95 45 52 88 204 284 24 4.2
18 - 20 3 /4 12.8 235 40 111 53 55 92 228 315 25 7.8
e 22 7 /8 15.5 265 46 123 66 71 110 258 268 32 9.9
d 26 1 21.6 305 54 133 65 81 120 277 420 33 13.8
g
32 1 /4 32.8 327 60 155 84 96 131 333 459 35 24.5
1
* Excluding sizes 16 mm, 18/20 mm, 22 mm, 26 mm and 32 mm
