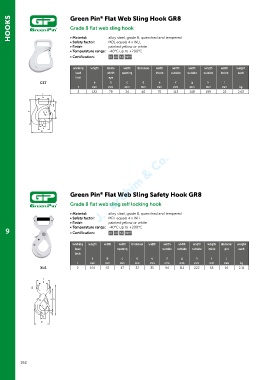

Page 162 - Green Pin Product Catalogue 2019_EN

®
HOOKS Green Pin Flat Web Sling Hook GR8
Grade 8 flat web sling hook

• Material:
• Safety factor: alloy steel, grade 8, quenched and tempered
MBL equals 4 x WLL
• Finish: painted yellow or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b

working length inside width thickness width width width length width weight
load width opening inside outside outside outside inside each
limit eye
CST a b c d e f g h i
t mm mm mm mm mm mm mm mm mm kg
3 132 79 34 40 75 113 148 199 25 2.63
f
b
i
h c a

d
e
g

Green Pin Flat Web Sling Safety Hook GR8
®
Grade 8 flat web sling self locking hook

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted yellow or white
• Temperature range: -40°C up to +200°C
9 • Certification: 2.1 2.2 3.1 MPI b

working length width width thickness width width width length length diameter weight
load opening outside outside outside inside pin each
limit
a b c d e f g h i j
t mm mm mm mm mm mm mm mm mm mm kg
XLS 2 161 62 47 32 35 94 111 222 18 16 2.11

f
b
j
i
a h
c
e
d
g

162
