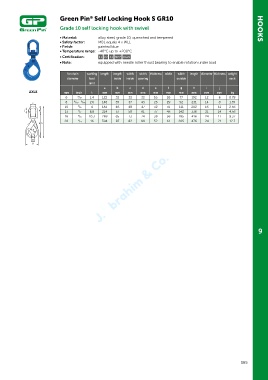

Page 165 - Green Pin Product Catalogue 2019_EN

Green Pin Self Locking Hook S GR10
®
Grade 10 self locking hook with swivel HOOKS

• Material: alloy steel, grade 10, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted blue
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b DGUV

• Note: equipped with needle roller thrust bearing to enable rotation under load
for chain working length length width width thickness width width length diameter thickness weight
diameter load inside inside opening outside each
limit
a b c d e f g h i j
UXLE mm inch t mm mm mm mm mm mm mm mm mm mm kg
6 7 /32 1.4 122 32 32 32 16 26 77 192 12 6 0.78
8 9 5 2.6 148 39 37 43 23 29 92 231 14 8 1.39
c /32 - /16
i 10 3 /8 4 183 46 48 47 32 35 111 282 16 11 2.56
j b 13 1 /2 6.8 214 57 58 61 37 45 142 336 21 14 4.56
16 5 /8 10.3 269 65 73 74 39 56 185 416 24 17 9.37
20 3 /4 16 304 87 82 90 52 61 205 476 24 21 12.7
ah
d
f
e
g
