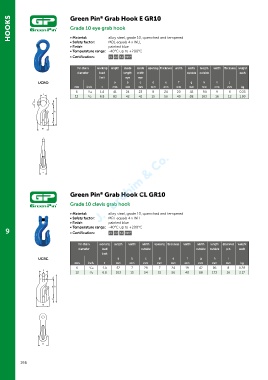

Page 166 - Green Pin Product Catalogue 2019_EN

HOOKS Green Pin Grab Hook E GR10
®
Grade 10 eye grab hook

• Material:
• Safety factor: alloy steel, grade 10, quenched and tempered
MBL equals 4 x WLL
• Finish: painted blue
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b

for chain working length inside inside opening thickness width width length width thickness weight
diameter load length width outside outside each
limit eye eye
UCRO a b c d e f g h i j
mm inch t mm mm mm mm mm mm mm mm mm mm kg
6 7 /32 1.4 41 24 23 8 24 20 42 94 9 6 0.25
c
13 1 /2 6.8 83 42 41 15 56 40 88 183 16 12 1.99
c
j b
j b
d h
a
d h
a
f
f
g
i g
i

e
e

Green Pin Grab Hook CL GR10
®
Grade 10 clevis grab hook

• Material: alloy steel, grade 10, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted blue
• Temperature range: -40°C up to +200°C
9 • Certification: 2.1 2.2 3.1 MPI b

for chain working length width width opening thickness width width length diameter weight
diameter load outside outside outside pin each
limit
UCRC a b c d e f g h i
mm inch t mm mm mm mm mm mm mm mm mm kg
6 7 /32 1.4 52 7 28 7 24 19 42 86 8 0.28
c
b 13 1 /2 6.8 103 15 54 15 56 40 88 173 16 2.17
c
b
i
i
d a h
d a h
f
g f
g

e
e

166
