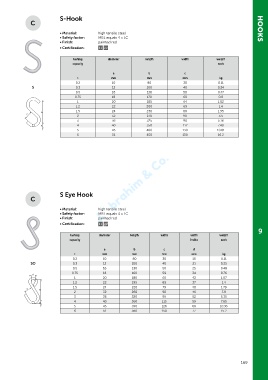

Page 169 - Green Pin Product Catalogue 2019_EN

S-Hook

• Material: high tensile steel HOOKS
• Safety factor: MBL equals 4 x LC
• Finish: painted red
• Certification: 2.1 2.2

lashing diameter length width weight
capacity each

a b c
t mm mm mm kg
0.2 10 80 30 0.11
S 0.3 13 100 40 0.24
0.5 16 130 50 0.47
0.75 18 170 60 0.8
1 20 185 64 1.02
1.2 22 200 69 1.4
1.5 24 230 80 1.95
b
c
2 32 270 90 3.5
3 36 325 98 5.16
a 4 40 350 112 7.48
5 45 400 130 10.81
6 51 450 150 16.2

S Eye Hook

• Material: high tensile steel
• Safety factor: MBL equals 4 x LC
• Finish: painted red
• Certification: 2.1 2.2

9
lashing diameter length width width weight
capacity inside each
a b c d
t mm mm mm mm kg
0.2 10 80 30 16 0.11
SO 0.3 13 100 40 21 0.25
0.5 16 130 50 25 0.48
0.75 18 160 59 34 0.76
d
1 20 180 65 42 1.07
1.2 22 195 69 37 1.4
1.5 24 220 79 40 1.79
c b
2 32 260 90 46 3.8
3 36 320 99 52 5.35
a 4 40 360 115 59 7.85
5 45 390 126 68 10.95
6 51 450 150 77 15.2
