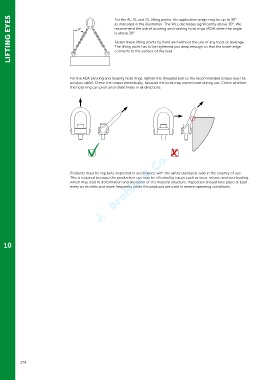

LIFTING EYES 30° For the AL, EL and OL lifting points, the application angle may be up to 30°
as indicated in the illustration. The WLL decreases significantly above 30°. We
recommend the use of pivoting and rotating hoist rings (ADA) when the angle
is above 30°.
Fasten these lifting points by hand and without the use of any tools or leverage.
The lifting point has to be tightened just deep enough so that the lower edge
connects to the surface of the load.

For the ADA pivoting and rotating hoist rings, tighten the threaded bolt to the recommended torque (see the
product table). Check the torque periodically, because the bolts may come loose during use. Check whether
the hoist ring can pivot and rotate freely in all directions.

Products must be regularly inspected in accordance with the safety standards valid in the country of use.
This is required because the products in use may be affected by issues such as wear, misuse and overloading,
which may lead to deformation and alteration of the material structure. Inspection should take place at least
every six months and more frequently when the products are used in severe operating conditions.
