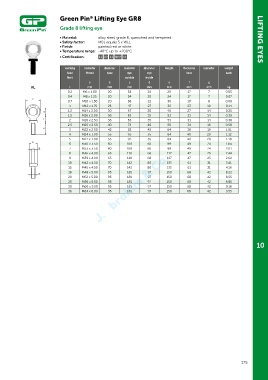

Green Pin Lifting Eye GR8
®
Grade 8 lifting eye

• Material: alloy steel, grade 8, quenched and tempered LIFTING EYES
• Safety factor: MBL equals 5 x WLL
• Finish: painted red or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b CE

working diameter diameter diameter diameter length thickness diameter weight
load thread base eye eye base each
limit outside inside
a b c d e f g
AL t mm mm mm mm mm mm mm kg
0.2 M6 x 1.00 20 34 20 20 17 7 0.05
0.4 M8 x 1.25 20 34 20 24 17 7 0.07
c
0.7 M10 x 1.50 20 38 22 30 19 8 0.08
c
1 M12 x 1.75 25 47 27 36 23 10 0.14
1.2 M14 x 2.00 30 57 30 40 27 14 0.25
d
d 1.5 M16 x 2.00 36 63 35 53 31 14 0.39
f 2 M18 x 2.50 36 63 35 53 31 14 0.38
f
2.5 M20 x 2.50 40 72 40 58 34 16 0.58
e
3 M22 x 2.50 42 82 45 64 38 19 1.01
e
4 M24 x 3.00 55 95 55 84 40 20 1.12
b 5 M27 x 3.00 55 95 55 84 40 20 1.18
b g 6 M30 x 3.50 60 108 60 99 49 24 1.84
g 7 M33 x 3.50 60 108 60 99 49 24 2.01
8 M36 x 4.00 65 118 68 117 47 25 2.44
9 M39 x 4.00 65 118 68 117 47 25 2.62
10 M42 x 4.50 70 142 80 135 61 31 5.41
15 M45 x 4.50 70 142 80 135 61 31 4.16
a
a 18 M48 x 5.00 95 181 97 150 68 42 8.22
20 M52 x 5.00 95 181 97 150 68 42 8.55
25 M56 x 5.50 95 181 97 150 68 42 8.85
30 M60 x 5.50 95 181 97 150 68 42 9.16
36 M64 x 6.00 95 181 97 150 68 42 9.55
