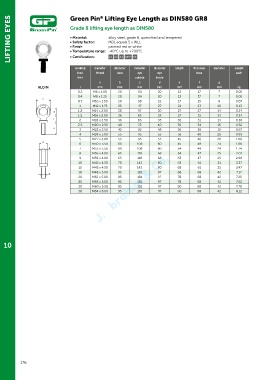

LIFTING EYES Green Pin Lifting Eye Length as DIN580 GR8
Grade 8 lifting eye length as DIN580

alloy steel, grade 8, quenched and tempered
• Material:
MBL equals 5 x WLL
• Safety factor:
• Finish:
painted red or white
• Temperature range: -40°C up to +200°C
• Certification:

diameter
diameter
working diameter 2.1 2.2 3.1 MPI b CE diameter length thickness diameter weight
load thread base eye eye base each
limit outside inside
a b c d e f g
ALDIN t mm mm mm mm mm mm mm kg
0.2 M6 x 1.00 20 34 20 13 17 7 0.05
0.4 M8 x 1.25 20 34 20 13 17 7 0.05
c
0.7 M10 x 1.50 20 38 22 17 19 8 0.07
c
1 M12 x 1.75 25 47 27 21 23 10 0.13
1.2 M14 x 2.00 30 57 30 27 27 14 0.24
d
d 1.5 M16 x 2.00 36 63 35 27 31 14 0.34
f 2 M18 x 2.50 36 63 35 30 31 14 0.38
f
2.5 M20 x 2.50 40 72 40 30 34 16 0.52
e
3 M22 x 2.50 42 82 45 36 38 19 0.67
e
4 M24 x 3.00 55 95 55 36 40 20 0.99
b 5 M27 x 3.00 55 95 55 45 40 20 1.08
b g 6 M30 x 3.50 60 108 60 45 49 24 1.66
g 7 M33 x 3.50 60 108 60 54 49 24 1.74
8 M36 x 4.00 65 118 68 54 47 25 2.01
9 M39 x 4.00 65 118 68 63 47 25 2.08
10 M42 x 4.50 70 142 80 63 61 31 3.37
15 M45 x 4.50 70 142 80 68 61 31 3.47
a
a 18 M48 x 5.00 95 181 97 68 68 42 7.17
20 M52 x 5.00 95 181 97 78 68 42 7.25
25 M56 x 5.50 95 181 97 78 68 42 7.52
30 M60 x 5.50 95 181 97 90 68 42 7.78
36 M64 x 6.00 95 181 97 90 68 42 8.12
