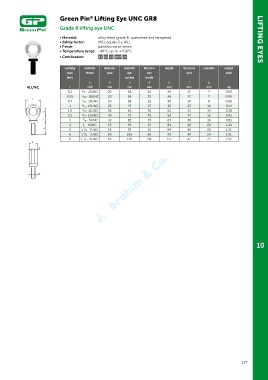

Page 177 - Green Pin Product Catalogue 2019_EN

Green Pin Lifting Eye UNC GR8
®
Grade 8 lifting eye UNC

• Material: alloy steel, grade 8, quenched and tempered LIFTING EYES
• Safety factor: MBL equals 5 x WLL
• Finish: painted red or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b CE

working diameter diameter diameter diameter length thickness diameter weight
load thread base eye eye base each
limit outside inside
a b c d e f g
ALUNC t inch mm mm mm mm mm mm kg
0.2 1 /4 - 20UNC 20 34 20 20 17 7 0.05
0.55 5 /16 - 18UNC 20 34 20 24 17 7 0.06
c
0.7 3 /8 - 16UNC 20 38 22 30 19 8 0.08
c
1 1 /2 - 13UNC 25 47 27 36 23 10 0.14
1.5 5 /8 - 11UNC 36 63 35 53 31 14 0.38
d
d 2.5 3 /4 - 10UNC 40 72 40 58 34 16 0.55
f 3 7 /8 - 9UNC 42 82 45 64 38 19 0.81
f
4 1 - 8UNC 55 95 55 84 40 20 1.14
e
5 1 /8 - 7UNC 55 95 55 84 40 20 1.21
1
e
1
6 1 /4 - 7UNC 60 108 60 99 49 24 1.91
b 8 1 /2 - 6UNC 65 118 68 117 47 25 2.52
1
b g
g
a
a
