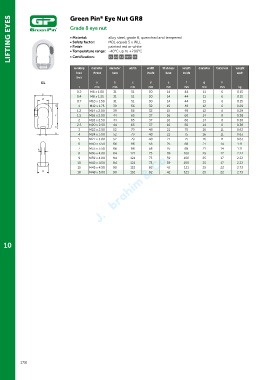

LIFTING EYES Green Pin Eye Nut GR8
®
Grade 8 eye nut

• Material:
alloy steel, grade 8, quenched and tempered
MBL equals 5 x WLL
• Safety factor:
painted red or white
• Finish:
• Temperature range: -40°C up to +200°C
• Certification:
b
CE

working diameter 2.1 2.2 3.1 MPI width width thickness length diameter thickness weight
diameter
load thread base inside base inside each
limit
EL a b c d e f g h
t mm mm mm mm mm mm mm mm kg
0.2 M6 x 1.00 31 51 30 14 44 11 6 0.15
c
0.4 M8 x 1.25 31 51 30 14 44 11 6 0.15
d
0.7 M10 x 1.50 31 51 30 14 44 11 6 0.15
g 1 M12 x 1.75 39 56 32 15 48 12 6 0.29
1.2 M14 x 2.00 39 56 32 15 48 12 6 0.29
f 1.5 M16 x 2.00 44 65 37 16 60 14 8 0.38
2 M18 x 2.50 44 65 37 16 60 14 8 0.38
2.5 M20 x 2.50 44 65 37 16 60 14 8 0.38
e
3 M22 x 2.50 52 79 48 21 75 16 11 0.63
a 4 M24 x 3.00 52 79 48 21 75 16 11 0.63
5 M27 x 3.00 52 79 48 21 75 16 11 0.63
6 M30 x 3.50 66 96 58 25 88 21 14 1.11
h 7 M33 x 3.50 66 96 58 25 88 21 14 1.11
8 M36 x 4.00 84 121 73 39 100 25 17 2.22
9 M39 x 4.00 84 121 73 39 100 25 17 2.22
10 M42 x 4.50 84 121 73 39 100 25 17 2.22
15 M45 x 4.50 90 132 82 42 121 25 22 2.73
b 18 M48 x 5.00 90 132 82 42 121 25 22 2.73
