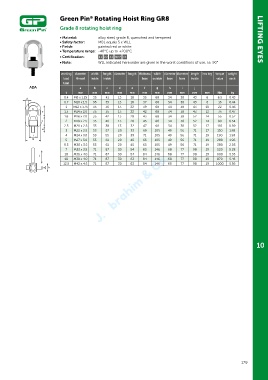

Page 179 - Green Pin Product Catalogue 2019_EN

Green Pin Rotating Hoist Ring GR8
®
Grade 8 rotating hoist ring

• Material: alloy steel, grade 8, quenched and tempered LIFTING EYES
• Safety factor: MBL equals 5 x WLL
• Finish: painted red or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b CE

• Note: WLL indicated hereunder are given in the worst conditions of use, i.e. 90°
working diameter width length diameter length thickness width diameter diameter length hex key torque weight
load thread inside inside base outside base base inside value each
limit
ADA a b c d e f g h i j
t mm mm mm mm mm mm mm mm mm mm mm Nm kg
d 0.4 M8 x 1.25 35 41 13 18 35 68 34 38 43 6 6.5 0.43
0.7 M10 x 1.5 35 39 13 18 37 68 34 38 43 8 13 0.44
d
1 M12 x 1.75 35 36 13 22 39 68 34 38 43 10 22 0.46
b
c 1.3 M14 x 2.0 35 35 13 22 42 68 34 38 43 12 35 0.47
b
c 1.6 M16 x 2.0 35 42 13 28 43 68 34 38 52 14 55 0.52
f 2 M18 x 2.5 35 40 13 28 45 68 34 38 52 14 80 0.54
f 2.5 M20 x 2.5 35 38 13 32 47 68 34 38 52 17 110 0.59
e 3 M22 x 2.5 53 57 20 33 69 105 49 56 71 17 150 1.88
i e 4 M24 x 3.0 53 55 20 39 71 105 49 56 71 19 190 1.93
g
i 5 M27 x 3.0 53 61 20 45 65 105 49 56 71 19 280 1.96
g 6.3 M30 x 3.5 53 61 20 45 65 105 49 56 71 19 380 2.03
j 7 M33 x 3.5 71 87 30 54 83 146 68 77 98 19 520 5.28
j 10 M36 x 4.0 71 87 30 54 84 146 68 77 98 19 600 5.35
10 M39 x 4.0 71 87 30 63 84 146 68 77 98 19 870 5.45
a h
12.5 M42 x 4.5 71 87 30 63 84 146 68 77 98 19 1000 5.56
a h
