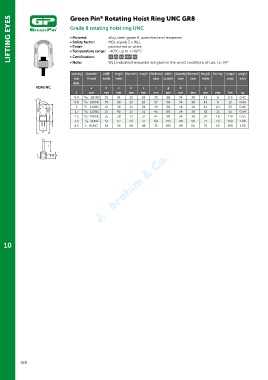

Page 180 - Green Pin Product Catalogue 2019_EN

LIFTING EYES Green Pin Rotating Hoist Ring UNC GR8
®
Grade 8 rotating hoist ring UNC

• Material:
alloy steel, grade 8, quenched and tempered
MBL equals 5 x WLL
• Safety factor:
• Finish:
painted red or white
• Temperature range: -40°C up to +200°C
• Certification:

• Note:
WLL indicated hereunder are given in the worst conditions of use, i.e. 90°
working diameter width 2.1 2.2 3.1 MPI b CE torque weight
length diameter length thickness width diameter diameter length hex key
load thread inside inside base outside base base inside value each
limit
ADAUNC a b c d e f g h i j
t inch mm mm mm mm mm mm mm mm mm mm Nm kg
0.4 5 /16 - 18UNC 35 41 13 18 35 68 34 38 43 6 6.5 0.43
d
0.6 3 /8 - 16UNC 35 39 13 18 37 68 34 38 43 8 13 0.44
d
b 1 1 /2 - 13UNC 35 36 13 24 39 68 34 38 43 10 22 0.46
c
b 1.7 5 /8 - 11UNC 35 42 13 31 43 68 34 38 52 13 55 0.54
c
f 2.5 3 /4 - 10UNC 35 38 13 31 47 68 34 38 52 16 110 0.55
f 3.5 7 /8 - 9UNC 53 57 20 37 69 105 49 56 71 19 150 1.88
e
4.5 1 - 8UNC 53 55 20 43 71 105 49 56 71 19 190 1.93
i e
g
i
g
j
j
a h
a h
