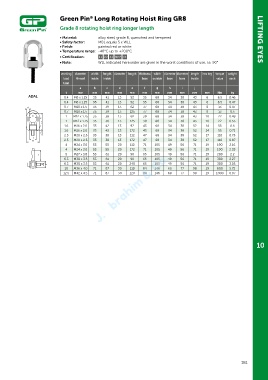

Green Pin Long Rotating Hoist Ring GR8
®
Grade 8 rotating hoist ring longer length

• Material: alloy steel, grade 8, quenched and tempered LIFTING EYES
• Safety factor: MBL equals 5 x WLL
• Finish: painted red or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 MPI b CE

• Note: WLL indicated hereunder are given in the worst conditions of use, i.e. 90°
working diameter width length diameter length thickness width diameter diameter length hex key torque weight
load thread inside inside base outside base base inside value each
limit
a b c d e f g h i j
t mm mm mm mm mm mm mm mm mm mm mm Nm kg
ADAL 0.4 M8 x 1.25 35 41 13 52 35 68 34 38 43 6 6.5 0.46
0.4 M8 x 1.25 35 41 13 92 35 68 34 38 43 6 6.5 0.47
d 0.7 M10 x 1.5 35 39 13 62 37 68 34 38 43 8 13 0.47
d 0.7 M10 x 1.5 35 39 13 125 37 68 34 38 43 8 13 0.5
b 1 M12 x 1.75 35 36 13 62 39 68 34 38 43 10 22 0.49
c
b 1 M12 x 1.75 35 36 13 125 39 68 34 38 43 10 22 0.53
c
f 1.6 M16 x 2.0 35 42 13 92 43 68 34 38 52 14 55 0.6
f 1.6 M16 x 2.0 35 42 13 172 43 68 34 38 52 14 55 0.71
e
2.5 M20 x 2.5 35 38 13 112 47 68 34 38 52 17 110 0.75
i e
g 2.5 M20 x 2.5 35 38 13 172 47 68 34 38 52 17 110 0.87
i
g 4 M24 x 3.0 53 55 20 112 71 105 49 56 71 19 190 2.16
j 4 M24 x 3.0 53 55 20 172 71 105 49 56 71 19 190 2.33
j 5 M27 x 3.0 53 61 20 90 65 105 49 56 71 19 280 2.2
a h 6.3 M30 x 3.5 53 61 20 90 65 105 49 56 71 19 380 2.27
a h 6.3 M30 x 3.5 53 61 20 240 65 105 49 56 71 19 380 3.05
10 M36 x 4.0 71 87 30 110 84 146 68 77 98 19 600 5.72
12.5 M42 x 4.5 71 87 30 120 84 146 68 77 98 19 1000 6.07

10
