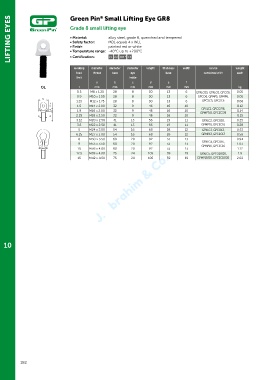

Page 182 - Green Pin Product Catalogue 2019_EN

®
LIFTING EYES Green Pin Small Lifting Eye GR8
Grade 8 small lifting eye

alloy steel, grade 8, quenched and tempered
• Material:
• Safety factor:
MBL equals 4 x WLL
• Finish:
painted red or white
• Temperature range: -40°C up to +200°C
• Certification:
CE

working diameter 2.1 2.2 MPI b diameter length thickness width can be weight
diameter
load thread base eye base combined with each
limit inside
a b c d e f
OL t mm mm mm mm mm mm kg
0.5 M8 x 1.25 28 8 30 13 6 GPXLC05, GPXLC0, GPCO5, 0.05
0.9 M10 x 1.50 28 8 30 13 6 GPCO6, GPMP5, GPMP6, 0.05
b
1.25 M12 x 1.75 28 8 30 13 6 GPCSC5, GPCSC6 0.06
f
c 1.5 M14 x 2.00 32 9 46 16 10 0.12
e GPXLC1, GPCO7/8,
1.9 M16 x 2.00 32 9 46 16 10 GPMP7/8, GPCSC7/8 0.14
a d 2.25 M18 x 2.50 32 9 46 16 10 0.15
3.12 M20 x 2.50 41 13 56 19 11 GPXLC2, GPCO10, 0.25
3.8 M22 x 2.50 41 13 56 19 11 GPMP10, GPCSC10 0.28
5 M24 x 3.00 54 16 68 28 12 GPXLC3, GPCO13, 0.53
6.25 M27 x 3.00 54 16 68 28 12 GPMP13, GPCSC13 0.58
8 M30 x 3.50 60 20 92 33 13 0.94
GPXLC4, GPCO16,
9 M33 x 3.50 60 20 92 33 13 GPMP16, GPCSC16 1.03
10 M36 x 4.00 60 20 92 33 13 1.12
12.5 M39 x 4.00 75 24 105 39 19 GPXLC5, GPCO18/20, 1.9
15 M42 x 4.50 75 24 105 39 19 GPMP18/20, GPCSC18/20 2.02
b
f
c
e
a d
