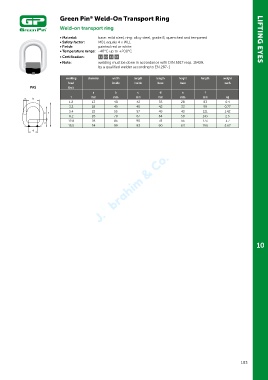

Page 183 - Green Pin Product Catalogue 2019_EN

Green Pin Weld-On Transport Ring
®
Weld-on transport ring

• Material: base: mild steel, ring: alloy steel, grade 8, quenched and tempered LIFTING EYES
• Safety factor: MBL equals 4 x WLL
• Finish: painted red or white
• Temperature range: -40°C up to +200°C
• Certification: 2.1 2.2 3.1 CE

• Note: welding must be done in accordance with DIN 5817 resp. 15429,
by a qualified welder according to EN 287-1
working diameter width length length height length weight
load inside inside base base each
PAS limit
a b c d e f
t mm mm mm mm mm mm kg
a b
1.2 13 40 42 35 28 83 0.4
3.2 18 45 48 42 33 99 0.77
5.4 22 55 57 49 42 121 1.42
c f
8.2 26 70 67 64 50 143 2.5
12.8 28 85 90 78 55 173 3.7
e
15.5 34 99 93 90 63 190 5.67
d
