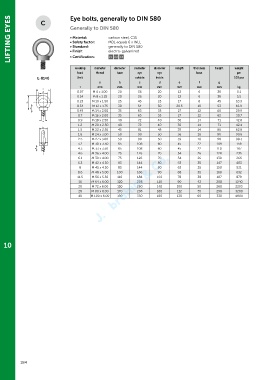

Page 184 - Green Pin Product Catalogue 2019_EN

LIFTING EYES Eye bolts, generally to DIN 580

Generally to DIN 580

• Material:
carbon steel, C15
• Safety factor:
MBL equals 6 x WLL
generally to DIN 580
• Standard:
electro-galvanized
• Finish:
• Certification:

working diameter 2.1 2.2 CE diameter diameter length thickness height weight
diameter
load thread base eye eye base per
E-8140 limit outside inside 100 pcs
a b c d e f g
t mm mm mm mm mm mm mm kg
0.07 M 6 x 1.00 20 36 20 13 6 36 5.1
0.14 M 8 x 1.25 20 36 20 13 6 36 5.5
0.23 M 10 x 1.50 25 45 25 17 8 45 10.3
0.34 M 12 x 1.75 30 54 30 20.5 10 53 16.9
0.49 M 14 x 2.00 35 63 35 27 12 60 29.9
0.7 M 16 x 2.00 35 63 35 27 12 62 30.7
0.9 M 18 x 2.50 40 72 40 30 14 71 42.8
1.2 M 20 x 2.50 40 72 40 30 14 71 42.4
1.5 M 22 x 2.50 45 81 45 39 14 80 62.8
1.8 M 24 x 3.00 50 90 50 36 18 90 90.8
2.5 M 27 x 3.00 50 90 50 39 18 90 88.3
3.2 M 30 x 3.50 65 108 60 45 22 109 159
4.3 M 33 x 3.50 65 108 60 45 22 110 167
4.6 M 36 x 4.00 75 126 70 54 26 128 235
6.1 M 39 x 4.00 75 126 70 54 26 130 266
6.3 M 42 x 4.50 85 144 80 63 30 147 403
8 M 45 x 4.50 85 144 80 63 35 150 521
8.6 M 48 x 5.00 100 166 90 68 35 168 632
11.5 M 56 x 5.50 110 184 100 78 38 187 879
16 M 64 x 6.00 120 206 110 90 42 208 1240
20 M 72 x 6.00 150 260 140 100 50 260 2293
28 M 80 x 6.00 170 296 160 112 55 298 3200
40 M 100 x 6.00 190 330 180 130 60 330 4800
