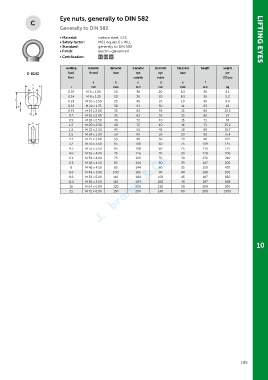

Page 185 - Green Pin Product Catalogue 2019_EN

Eye nuts, generally to DIN 582

Generally to DIN 582

• Material: carbon steel, C15 LIFTING EYES
• Safety factor: MBL equals 6 x WLL
• Standard: generally to DIN 582
• Finish: electro-galvanized
• Certification: 2.1 2.2 CE

working diameter diameter diameter diameter thickness height weight
E-8142 load thread base eye eye base per
limit outside inside 100 pcs
a b c d e f
t mm mm mm mm mm mm kg
0.07 M 6 x 1.00 20 36 20 8.5 36 5.1
0.14 M 8 x 1.25 20 36 20 8.5 36 5.2
0.23 M 10 x 1.50 25 45 25 10 45 9.4
0.34 M 12 x 1.75 30 54 30 11 53 16
0.49 M 14 x 2.00 35 63 35 13 60 25.5
0.7 M 16 x 2.00 35 63 35 13 62 24
0.9 M 18 x 2.50 40 72 40 16 71 36
1.2 M 20 x 2.50 40 72 40 16 71 35.2
1.5 M 22 x 2.50 45 81 45 18 80 51.7
1.8 M 24 x 3.00 50 90 50 20 90 75.4
2.5 M 27 x 3.00 50 90 50 20 90 102
3.2 M 30 x 3.50 65 108 60 25 109 125
4.3 M 33 x 3.50 65 108 60 25 110 131
4.6 M 36 x 4.00 75 126 70 30 128 208
6.1 M 39 x 4.00 75 126 70 30 130 210
6.3 M 42 x 4.50 85 144 80 35 147 305
8 M 45 x 4.50 85 144 80 35 150 407
8.6 M 48 x 5.00 100 166 90 40 168 502
8.6 M 52 x 5.00 110 184 100 45 187 830
11.5 M 56 x 5.50 110 184 100 45 187 669
16 M 64 x 6.00 120 206 110 50 208 930
21 M 72 x 6.00 150 260 140 60 260 1500
