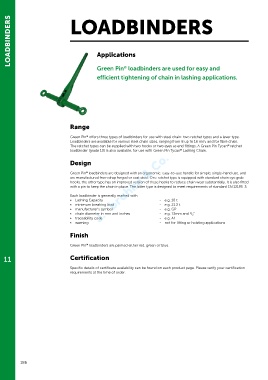

Page 186 - Green Pin Product Catalogue 2019_EN

LOADBINDERS LOADBINDERS

Applications

Green Pin loadbinders are used for easy and
®
efficient tightening of chain in lashing applications.

Range

®
Green Pin offers three types of loadbinders for use with steel chain: two ratchet types and a lever type.
Loadbinders are available for various steel chain sizes, ranging from 8 up to 16 mm, and for fibre chain.
®
The ratchet types can be supplied with two hooks or two eyes as end fittings. A Green Pin Tycan ratchet
loadbinder (grade 10) is also available, for use with Green Pin Tycan Lashing Chain.
®
Design

®
Green Pin loadbinders are designed with an ergonomic, easy-to-use handle for simple, single-hand use, and
are manufactured from drop forged or cast steel. One ratchet type is equipped with standard chain eye grab
hooks, the other type has an improved version of these hooks to reduce chain wear substantially. It is also fitted
with a pin to keep the chain in place. The latter type is designed to meet requirements of standard EN 12195-3.

Each loadbinder is generally marked with:
• Lashing Capacity - e.g. 10 t
• minimum breaking load - e.g. 21.2 t
• manufacturer’s symbol - e.g. GP
• chain diameter in mm and inches - e.g. 13mm and /2"
1
• traceability code - e.g. A1
• warning - not for lifting or hoisting applications
Finish

Green Pin loadbinders are painted either red, green or blue.
®

11 Certification

Specific details of certificate availability can be found on each product page. Please verify your certification
requirements at the time of order.
