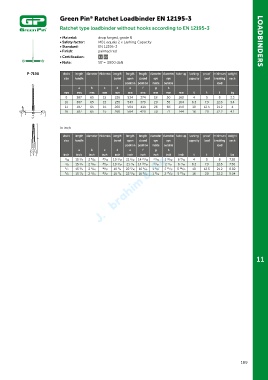

Page 189 - Green Pin Product Catalogue 2019_EN

Green Pin Ratchet Loadbinder EN 12195-3
®
Ratchet type loadbinder without hooks according to EN 12195-3

• Material: drop forged, grade 8
• Safety factor: MBL equals 2 x Lashing Capacity LOADBINDERS
• Standard: EN 12195-3
• Finish: painted red
• Certification: 2.1 2.2

• Note: Stf = 3000 daN

P-7190 chain length diameter thickness length length length diameter diameter take-up lashing proof minimum weight
size handle barrel open closed eye eye capacity load breaking each
position position inside outside load
a b c d e f g h
mm mm mm mm mm mm mm mm mm mm t t t kg
8 387 65 15 255 534 374 18 50 160 4 5 8 3.3
10 387 65 15 255 543 379 20 55 164 6.3 7.9 12.6 3.4
13 387 65 15 260 564 414 26 66 150 10 12.5 21.2 4
16 387 65 15 260 564 420 30 71 144 16 20 32.2 4.1

In inch
chain length diameter thickness length length length diameter diameter take-up lashing proof minimum weight
size handle barrel open closed eye eye capacity load breaking each
position position inside outside load
a b c d e f g h
inch inch inch inch inch inch inch inch inch inch t t t lbs
5 1 9 19 1 1 23 23 31 9 4 5 8 7.28
/16 15 /4 2 /16 /32 10 /32 21 /32 14 /32 /32 1 /32 6 /32
3 1 9 19 1 3 29 25 5 7 6.3 7.9 12.6 7.50
/8 15 /4 2 /16 /32 10 /32 21 /8 14 /32 /32 2 /32 6 /16
1 1 9 19 1 3 5 1 19 29 10 12.5 21.2 8.82
/2 15 /4 2 /16 /32 10 /4 22 /16 16 /16 1 /32 2 /32 5 /32
5 1 9 19 1 3 9 3 25 11 16 20 32.2 9.04
/8 15 /4 2 /16 /32 10 /4 22 /16 16 /16 1 /16 2 /32 5 /16
