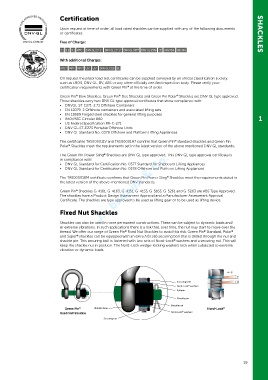

Page 19 - Green Pin Product Catalogue 2019_EN

Certification

Upon request at time of order, all load rated shackles can be supplied with any of the following documents
or certificates: SHACKLES
Free of Charge:

2.1 2.2 3.1 MTC a DNV GL 2.7-1 a DNV GL 2.7-1 b DNV GL 0377 DNV GL 0378 CE ABS PDA ABS MA

With additional Charges:
MTC b MPI a MPI b US a US b DNV GL CG3 BL

On request the proof load test certificates can be supplied surveyed by an official classification society,
such as LROS, DNV GL, BV, ABS or any other officially certified inspection body. Please verify your
certification requirements with Green Pin at the time of order.
®
®
®
®
Green Pin Bow Shackles, Green Pin Dee Shackles and Green Pin Polar Shackles are DNV GL type approved.
These shackles carry two DNV GL type approval certificates that show compliance with:
• DNVGL-ST-E271-2.71 Offshore Containers
• EN 12079-2 Offshore containers and associated lifting sets
• EN 13889 Forged steel shackles for general lifting purposes
• IMO/MSC Circular 860 1
• US Federal Specification RR-C-271
• DNV GL-ST-E273 Portable Offshore Units
• DNV GL Standard No. 0378 Offshore and Platform Lifting Appliances
The certificates TAS000011V and TAS00001H7 confirm that Green Pin standard shackles and Green Pin
®
®
Polar Shackles meet the requirements set in the latest version of the above mentioned DNV GL standards.
®
The Green Pin Power Sling Shackles are DNV GL type approved. This DNV GL type approval certificate is
in compliance with:
• DNV GL Standard for Certification No. 0377 Standard for Shipboard Lifting Appliances
• DNV GL Standard for Certification No. 0378 Offshore and Platform Lifting Appliances
The TAS000018M certificate confirms that Green Pin Power Sling Shackles meet the requirements stated in
®
the latest version of the above-mentioned DNV standards.
®
Green Pin Shackles G-4161, G-4163, G-4151, G-4153, G-5163, G-5261 and G-5263 are ABS Type Approved.
The shackles have a Product Design Assessment Approval and a Manufacturer Assessment Approval
Certificate. The shackles are type approved to be used as lifting gear or to be used as lifting device.
Fixed Nut Shackles

Shackles can also be used in more permanent constructions. These can be subject to dynamic loads and/
or extreme vibrations. In such applications there is a risk that, over time, the nut may start to move over the
®
thread. We offer our range of Green Pin Fixed Nut Shackles to avoid this risk. Green Pin Standard, Polar
®
®
®
and Super shackles can be equipped with an extra AISI 316 securing bolt that is drilled through the nut and
shackle pin. This securing bolt is fastened with two sets of Nord-Lock washers and a securing nut. This will
®
keep the shackle nut in position. The Nord-Lock wedge-locking washers lock when subjected to extreme
vibration or dynamic loads.

Securing bolt
Nord-Lock ® washers
Splitpin
Shackle pin
Shackle nut
®
Green Pin Shackle bow Nord-Lock ®
Fixed Nut Shackle Nord-Lock ® washers
Securing nut
