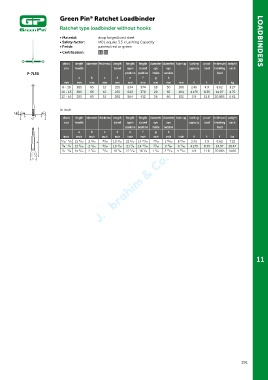

Page 191 - Green Pin Product Catalogue 2019_EN

Green Pin Ratchet Loadbinder
®
Ratchet type loadbinder without hooks

• Material: drop forged/cast steel
• Safety factor: MBL equals 3.5 x Lashing Capacity LOADBINDERS
• Finish: painted red or green
• Certification: 2.1 2.2

chain length diameter thickness length length length diameter diameter take-up lashing proof minimum weight
size handle barrel open closed eye eye capacity load breaking each
P-7150 position position inside outside load
a b c d e f g h
mm mm mm mm mm mm mm mm mm mm t t t kg
8 - 10 385 65 15 255 534 374 18 50 160 2.45 4.9 8.62 3.27
10 - 13 385 65 15 255 543 379 20 55 164 4.175 8.35 14.97 4.75
13 - 16 385 65 15 260 564 412 26 66 152 5.9 11.8 20.865 6.65

In inch
chain length diameter thickness length length length diameter diameter take-up lashing proof minimum weight
size handle barrel open closed eye eye capacity load breaking each
position position inside outside load
a b c d e f g h
inch inch inch inch inch inch inch inch inch inch t t t lbs
5 - 3 5 9 19 1 1 23 23 31 9 2.45 4.9 8.62 7.21
/16 /8 15 /32 2 /16 /32 10 /32 21 /32 14 /32 /32 1 /32 6 /32
3 - 1 5 9 19 1 3 29 25 5 7 4.175 8.35 14.97 10.47
/8 /2 15 /32 2 /16 /32 10 /32 21 /8 14 /32 /32 2 /32 6 /16
1 - 5 5 9 19 1 3 1 1 19 31 5.9 11.8 20.865 14.66
/2 /8 15 /32 2 /16 /32 10 /4 22 /16 16 /4 1 /32 2 /32 5 /32
