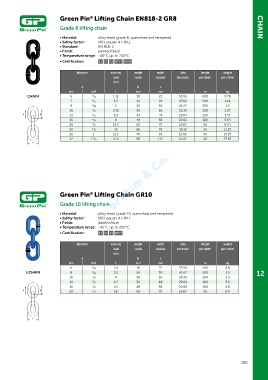

Page 195 - Green Pin Product Catalogue 2019_EN

Green Pin Lifting Chain EN818-2 GR8
®
Grade 8 lifting chain CHAIN

• Material: alloy steel, grade 8, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Standard : EN 818-2
• Finish: painted black
• Temperature range: -40°C up to 200°C
• Certification: 2.1 2.2 3.1 MTC b DGUV

diameter working length width links length weight
load inside outside per meter per drum per meter
limit
a b c
mm inch t mm mm m kg
CHAIN 6 7 /32 1.12 18 22 55.56 600 0.78
7 1 /4 1.5 21 26 47.62 500 1.14
8 5 /16 2 24 30 41.67 350 1.5
10 3 /8 3.15 30 36 33.33 250 2.27
a b 13 1 /2 5.3 39 47 25.64 150 3.74
16 5 /8 8 48 58 20.83 100 5.54
20 3 /4 12.5 60 72 16.67 60 8.94
22 7 /8 15 66 79 15.15 50 11.57
26 1 21.2 78 93 12.82 30 15.26
1
32 1 /4 31.5 96 112 10.42 50 22.61
c

Green Pin Lifting Chain GR10
®
Grade 10 lifting chain

• Material: alloy steel, grade 10, quenched and tempered
• Safety factor: MBL equals 4 x WLL
• Finish: painted blue
• Temperature range: -40°C up to 200°C
• Certification: 2.1 2.2 3.1 MTC b

diameter working length width links length weight
load inside outside per meter per drum per meter
limit
a b c
mm inch t mm mm m kg
6 7 /32 1.4 18 22 55.56 200 0.8
UCHAIN 8 5 /16 2.5 24 30 41.67 200 1.5 12
10 3 /8 4 30 36 33.33 200 2.3
13 1 /2 6.7 39 48 25.64 100 3.9
16 5 /8 10 48 58 20.83 100 5.8
a b 20 3 /4 16 60 72 16.67 50 8.9

c

195
